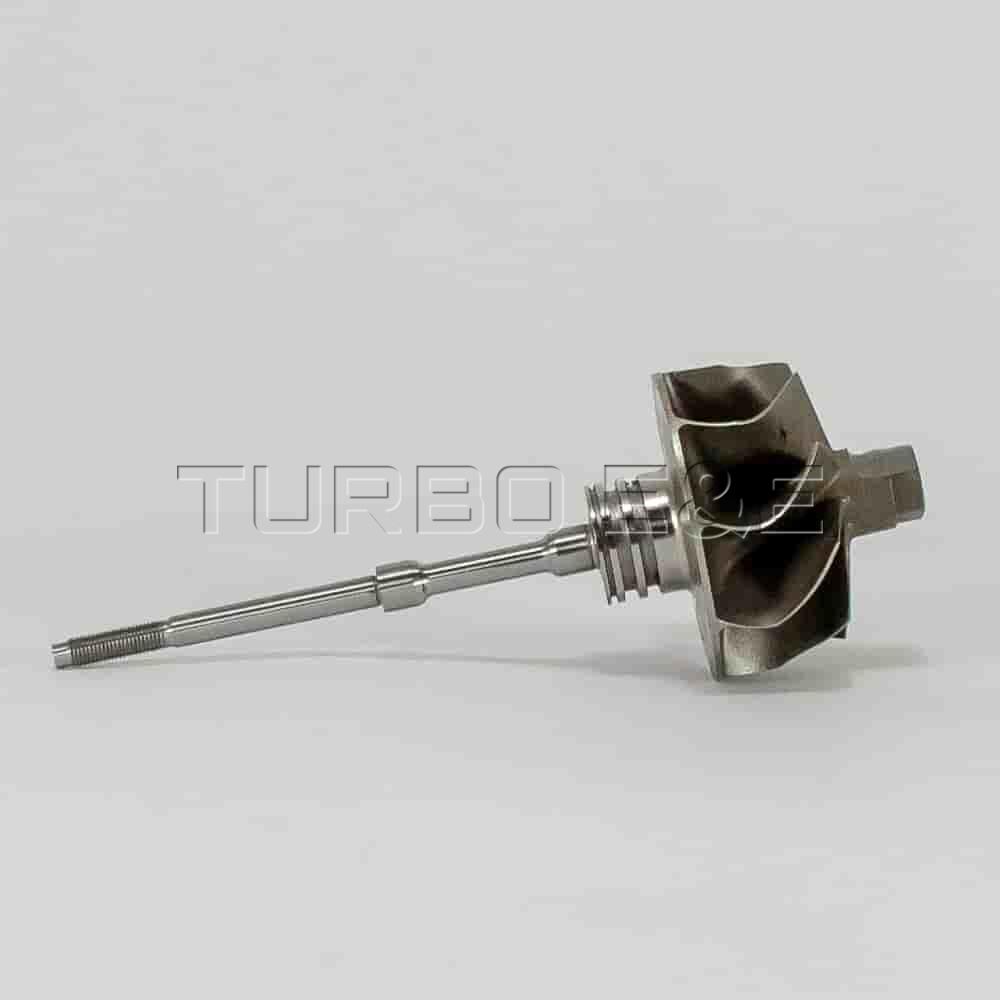

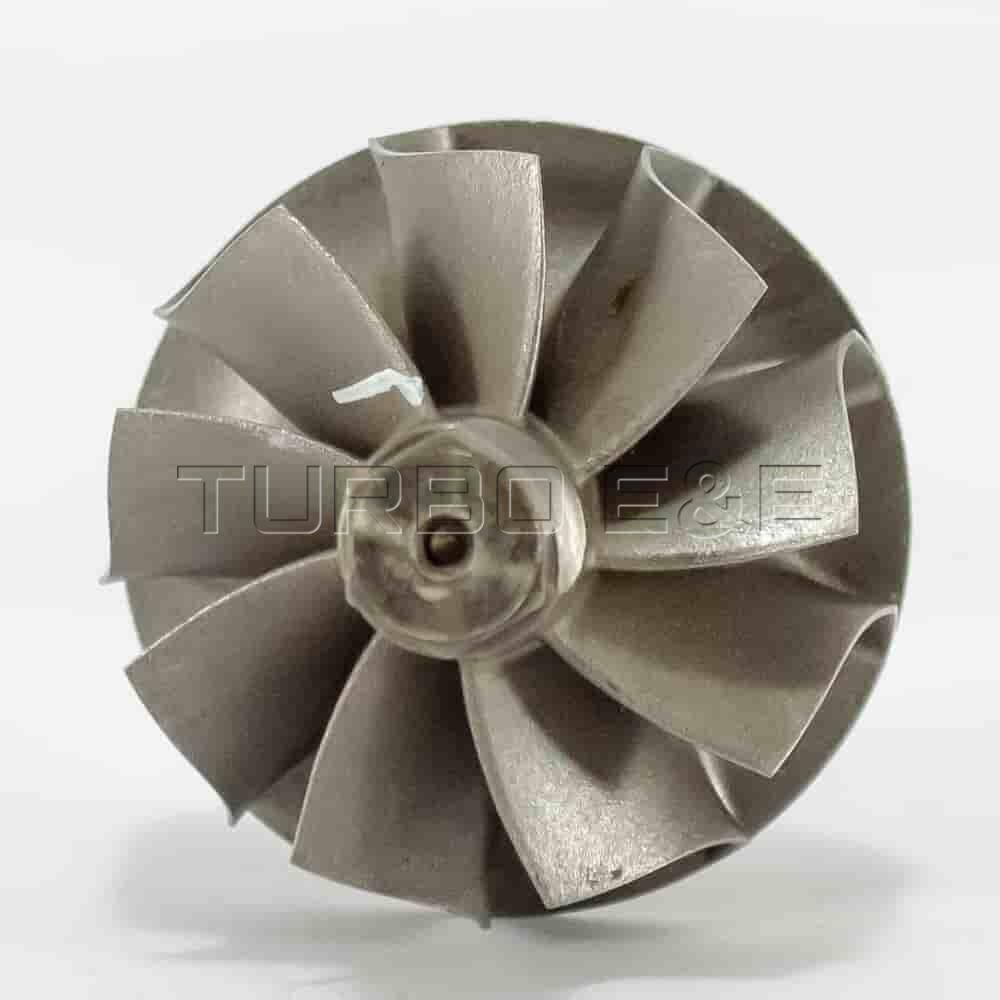

TW-0447

In stock

Prices are available for authorized users

Specifications

A, mm
Exducer Diameter
35.80
Exducer Diameter
B, mm
Inducer Diameter
39.00
Inducer Diameter
C, mm
Tip Height
8.04
Tip Height
D, mm
Journal Bearing
6.00
Journal Bearing
E, mm
CW Bore
4.08
CW Bore
F, mm
Shaft Thread
M4X0.5-LH
Shaft Thread
G, mm
Wheel Height
18.00
Wheel Height
H, mm
JB Shaft Length
38.5
JB Shaft Length
Blades
9

Note
Plate Closed, Twin P.Ring

Note

All names, numbers, symbols and descriptions are for reference only and do not represent any part, part or assembly as a _product of these manufacturers. All dimensions are in millimeters

Usage

774193-0003
- Turbo model GTB1446VZJ
- Car makeRenault
- Car model Mégane
- Engine displacement 1.9L
- Engine power, kW/HP -
- Year of manufacture2009
- OEM8200753383G
774193-0004
- Turbo model GTB1446VZJ
- Car makeRenault
- Car model Scénic
- Engine displacement 1.9L
- Engine power, kW/HP -
- Year of manufacture2009
- OEM8200753383H
777948-0003
- Turbo model GTB1446VZ
- Car makeSuzuki
- Car model Grand Vitara
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture2009
- OEM8200962608D
783248-0002
- Turbo model GTB1449VZL
- Car makePeugeot
- Car model 5008
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2007
- OEM9688361580
783248-0003
- Turbo model GTC1459VZ
- Car makeCitroen
- Car model C4 Picasso
- Engine displacement 2.0D
- Engine power, kW/HP 120/163
- Year of manufacture2007
- OEM9688361580
783248-0004
- Turbo model GTC1459VZ
- Car makeCitroen
- Car model C4 Picasso
- Engine displacement 2.0D
- Engine power, kW/HP 120/163
- Year of manufacture2007
- OEM9688361580
783248-0005
- Turbo model GTB1449VZL
- Car makePeugeot
- Car model 5008
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2007
- OEM9688361580
783583-0002
- Turbo model GTB1449VZ
- Car makeFord
- Car model Focus
- Engine displacement 2.0D
- Engine power, kW/HP 85/120
- Year of manufacture2010
- OEM783583-0002
783583-0003
- Turbo model GTB1449VZ
- Car makeFord
- Car model Galaxy
- Engine displacement 2.0D
- Engine power, kW/HP 85/120
- Year of manufacture2010
- OEM9671413780
783583-0004
- Turbo model GTB1449VZ
- Car makeFord
- Car model Kuga
- Engine displacement 2.0D
- Engine power, kW/HP 85/120
- Year of manufacture2010
- OEM9671413780
783583-0005
- Turbo model GTB1449VZ
- Car makeFord
- Car model Galaxy
- Engine displacement 2.0D
- Engine power, kW/HP 85/120
- Year of manufacture2010
- OEM783583-0005
792290-0002
- Turbo model GTB1446VZ
- Car makeVolkswagen
- Car model T5 Transporter
- Engine displacement 2.0D
- Engine power, kW/HP 62/83
- Year of manufacture2009
- OEM03L253016M
792290-0003
- Turbo model GTB1446VZ
- Car makeVolkswagen
- Car model T5 Transporter
- Engine displacement 2.0D
- Engine power, kW/HP 103/138
- Year of manufacture2009
- OEM03L253016MX
792290-0004
- Turbo model GTB1446VZ
- Car makeVolkswagen
- Car model T5 Transporter
- Engine displacement 2.0D
- Engine power, kW/HP 62/83
- Year of manufacture2009
- OEM03L253016MV700
792623-0001
- Turbo model GTB1449VZL
- Car makeCitroen
- Car model C8
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2010
- OEM9672266780
792623-0002
- Turbo model GTB1449VZL
- Car makeFiat
- Car model Scudo
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2010
- OEM9672266780
794097-0001
- Turbo model GTB1444V
- Car makeHyundai
- Car model Tucson
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2010
- OEM28201-2A800
794786-0001
- Turbo model GTB1449VLG
- Car makeHonda
- Car model CR-V
- Engine displacement 2.2D
- Engine power, kW/HP -
- Year of manufacture2009
- OEM18900RFWWG020M2
795090-0003
- Turbo model GTC1446MVZ
- Car makeVolkswagen
- Car model Amarok
- Engine displacement 2.0D
- Engine power, kW/HP 90/122
- Year of manufacture2010
- OEM03L253016SV300
802452-0004
- Turbo model GTC1446VKZ
- Car makeAudi
- Car model A4
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM802452-0004
802452-0005
- Turbo model GTC1446VKZ
- Car makeAudi
- Car model A4
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM802452-0005
803955-0003
- Turbo model GTC1446VMZ
- Car makeVolkswagen
- Car model Crafter TDI
- Engine displacement 2.0D
- Engine power, kW/HP 80/107
- Year of manufacture2011
- OEM03L253014AV300
803955-0004
- Turbo model GTC1446VMZ
- Car makeVolkswagen
- Car model Crafter TDI
- Engine displacement 2.0D
- Engine power, kW/HP 80/107
- Year of manufacture2011
- OEM803955-0004
803955-0005
- Turbo model GTC1446VMZ
- Car makeVolkswagen
- Car model Crafter TDI
- Engine displacement 2.0D
- Engine power, kW/HP 100/134
- Year of manufacture2011
- OEM03L253014AV351
803955-0007
- Turbo model GTC1446VMZ
- Car makeVolkswagen
- Car model Crafter TDI
- Engine displacement 2.0D
- Engine power, kW/HP 100/134
- Year of manufacture2011
- OEM803955-0007
805775-0002
- Turbo model GTC1446VKZ
- Car makeSeat
- Car model Exeo
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM 03L145721V400
806497-0001
- Turbo model GTB1449VZL
- Car makePeugeot
- Car model 3008
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2007
- OEM9688361580
806497-0002
- Turbo model GTB1449VZL
- Car makePeugeot
- Car model 3008
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2007
- OEM806497-0002
806497-0003
- Turbo model GTC1446VZ
- Car makeAudi
- Car model A4
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM806497-0003
806498-0001
- Turbo model GTB1449VZ
- Car makeFord
- Car model Mondeo
- Engine displacement 2.0D
- Engine power, kW/HP 120/161
- Year of manufacture2012
- OEM9671413780
806498-0003
- Turbo model GTB1449VZ
- Car makeFord
- Car model Galaxy
- Engine displacement 2.0D
- Engine power, kW/HP 120/161
- Year of manufacture2012
- OEM9671413780
806499-0001
- Turbo model GTB1449VLZ
- Car makeCitroen
- Car model Jumper
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM1609656880
806499-0002
- Turbo model GTB1449VZL
- Car makeCitroen
- Car model Jumper
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM9677063180
806500-0001
- Turbo model GTB1449VZL
- Car makeCitroen
- Car model C4
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2009
- OEM9674962080
806500-0002
- Turbo model GTB1449VZL
- Car makeCitroen
- Car model C4
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2009
- OEM9674962080
807489-0001
- Turbo model GTB1449VZ
- Car makeCitroen
- Car model C4
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2012
- OEM9675101580
807489-0002
- Turbo model GTB1449VZ
- Car makeCitroen
- Car model C4
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2000
- OEM9675101580
809603-0001
- Turbo model GTC1446MVZ
- Car makeVolkswagen
- Car model Amarok
- Engine displacement 2.0D
- Engine power, kW/HP 90/122
- Year of manufacture2010
- OEM03L253014C
810164-0002
- Turbo model GTC1446VZ
- Car makeJAC
- Car model Fudi F22
- Engine displacement 1.9B
- Engine power, kW/HP -
- Year of manufacture2017
- OEMX191536
810164-0003
- Turbo model GTC1446VZ
- Car makeJAC
- Car model Fudi F22
- Engine displacement 1.9B
- Engine power, kW/HP -
- Year of manufacture2017
- OEMX191271
810164-0004
- Turbo model GTC1446VZ
- Car makeJAC
- Car model Fudi F22
- Engine displacement 1.9B
- Engine power, kW/HP -
- Year of manufacture2017
- OEMX10001370
815479-0001
- Turbo model GTC1446VZK
- Car makeGreat Wall
- Car model H5
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2013
- OEM1118100-XED12
815479-0002
- Turbo model GTC1446VZ
- Car makeGreat Wall
- Car model H5
- Engine displacement 2.0L
- Engine power, kW/HP -
- Year of manufacture2000
- OEM1118100-E03-B1
815479-0004
- Turbo model GTC1446VZK
- Car makeGreat Wall
- Car model H5
- Engine displacement 2.0L
- Engine power, kW/HP -
- Year of manufacture2000
- OEM1118100-XED15
815479-0005
- Turbo model GTC1446VZK
- Car makeGreat Wall
- Car model H5
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2013
- OEM1118100-XED12
815479-0006
- Turbo model GTC1446VZK
- Car makeGreat Wall
- Car model H5
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2013
- OEM1118100-AED30
815479-0007
- Turbo model GTC1446VZK
- Car makeGreat Wall
- Car model H5
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2013
- OEM1118100-XED12
815479-0008
- Turbo model GTC1446VZK
- Car makeGreat Wall
- Car model H5
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2013
- OEM1118100-XED30
815479-0010
- Turbo model GTC1446VZ
- Car makeGreat Wall
- Car model H5
- Engine displacement 2.0L
- Engine power, kW/HP -
- Year of manufacture2000
- OEM815479-0010
817081-0001
- Turbo model GTC1446VKZ
- Car makeAudi
- Car model A4
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM03L145721A
817082-0001
- Turbo model GTC1446VKZ
- Car makeSeat
- Car model Exeo
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM03L145721C
818988-0001
- Turbo model GTC1446VKZ
- Car makeAudi
- Car model A4
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM03L145721AV100
818988-0002
- Turbo model GTC1446VKZ
- Car makeAudi
- Car model A4
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM818988-0002
818989-0001
- Turbo model GTC1446VKZ
- Car makeSeat
- Car model Exeo
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM03L145721CV100
818989-0002
- Turbo model GTC1446VKZ
- Car makeSeat
- Car model Exeo
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2011
- OEM818989-0002
819891-0005
- Turbo model GTD1449VZ
- Car makeVolkswagen
- Car model Passat
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2012
- OEM04L253010E
819891-0009
- Turbo model GTD1449VZ
- Car makeVolkswagen
- Car model Passat
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2012
- OEM04L253010E
821866-0001
- Turbo model GTD1449V
- Car makeVolkswagen
- Car model Passat
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2012
- OEM821866-0001
821866-0002
- Turbo model GTD1449V
- Car makeVolkswagen
- Car model Passat
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2012
- OEM821866-0002
821866-0003
- Turbo model GTD1449V
- Car makeVolkswagen
- Car model Passat
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2012
- OEM821866-0003
821866-0004
- Turbo model GTD1449V
- Car makeVolkswagen
- Car model Passat
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2012
- OEM04L 253 010H
821866-0009
- Turbo model GTD1449V
- Car makeVolkswagen
- Car model Passat
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2012
- OEM821866-0005
822051-0003
- Turbo model GTD1449VZ
- Car makeVolkswagen
- Car model Golf
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2015
- OEM04L253010JV300
822051-0003
- Turbo model GTD1449V
- Car makeVolkswagen
- Car model Golf
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2015
- OEM04L253010JV300
822051-0006
- Turbo model GTD1449VZ
- Car makeVolkswagen
- Car model Scirocco
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2015
- OEM04L253056Q
822051-0006
- Turbo model GTD1449V
- Car makeVolkswagen
- Car model Scirocco
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2015
- OEM04L253056Q
832453-0002
- Turbo model GTC1446VZ
- Car makeGreat Wall
- Car model H5
- Engine displacement 2.0L
- Engine power, kW/HP -
- Year of manufacture2000
- OEM832453-0002
834227-0001
- Turbo model GTC1446VZK
- Car makeSAIC
- Car model MAXUS V80/G10/T60
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture2011-2016
- OEM834227-0001
834227-0001
- Turbo model GTC1446VZK
- Car makeSAIC
- Car model MAXUS V80 / G10 / T60
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture2011-2016
- OEM834227-0001
834227-0002
- Turbo model GTC1446VZK
- Car makeSAIC
- Car model MAXUS V80/G10/T60
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture2011-2016
- OEM834227-0002
834227-0002
- Turbo model GTC1446VZK
- Car makeSAIC
- Car model MAXUS V80 / G10 / T60
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture2011-2016
- OEM834227-0002
848144-0001
- Turbo model GTC1446VZK
- Car makeSAIC
- Car model MAXUS V80/G10/T60
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture2011-2016
- OEM848144-0001
848144-0001
- Turbo model GTC1446VZK
- Car makeSAIC
- Car model MAXUS V80 / G10 / T60
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture2011-2016
- OEM848144-0001
848184-0001
- Turbo model GTC1446VZK
- Car makeSAIC
- Car model MAXUS V80/G10/T60
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture2011-2016
- OEMX10000707
848184-0002
- Turbo model GTC1446VZK
- Car makeSAIC
- Car model MAXUS V80/G10/T60
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture2011-2016
- OEM10168923

Turbo No.	Turbo model	Car make	Car model	Engine displacement	Engine power, kW/HP	Year of manufacture	OEM
774193-0003	GTB1446VZJ	Renault	Mégane	1.9L	-	2009	8200753383G
774193-0004	GTB1446VZJ	Renault	Scénic	1.9L	-	2009	8200753383H
777948-0003	GTB1446VZ	Suzuki	Grand Vitara	1.9D	-	2009	8200962608D
783248-0002	GTB1449VZL	Peugeot	5008	-	-	2007	9688361580
783248-0003	GTC1459VZ	Citroen	C4 Picasso	2.0D	120/163	2007	9688361580
783248-0004	GTC1459VZ	Citroen	C4 Picasso	2.0D	120/163	2007	9688361580
783248-0005	GTB1449VZL	Peugeot	5008	-	-	2007	9688361580
783583-0002	GTB1449VZ	Ford	Focus	2.0D	85/120	2010	783583-0002
783583-0003	GTB1449VZ	Ford	Galaxy	2.0D	85/120	2010	9671413780
783583-0004	GTB1449VZ	Ford	Kuga	2.0D	85/120	2010	9671413780
783583-0005	GTB1449VZ	Ford	Galaxy	2.0D	85/120	2010	783583-0005
792290-0002	GTB1446VZ	Volkswagen	T5 Transporter	2.0D	62/83	2009	03L253016M
792290-0003	GTB1446VZ	Volkswagen	T5 Transporter	2.0D	103/138	2009	03L253016MX
792290-0004	GTB1446VZ	Volkswagen	T5 Transporter	2.0D	62/83	2009	03L253016MV700
792623-0001	GTB1449VZL	Citroen	C8	-	-	2010	9672266780
792623-0002	GTB1449VZL	Fiat	Scudo	-	-	2010	9672266780
794097-0001	GTB1444V	Hyundai	Tucson	-	-	2010	28201-2A800
794786-0001	GTB1449VLG	Honda	CR-V	2.2D	-	2009	18900RFWWG020M2
795090-0003	GTC1446MVZ	Volkswagen	Amarok	2.0D	90/122	2010	03L253016SV300
802452-0004	GTC1446VKZ	Audi	A4	-	-	2011	802452-0004
802452-0005	GTC1446VKZ	Audi	A4	-	-	2011	802452-0005
803955-0003	GTC1446VMZ	Volkswagen	Crafter TDI	2.0D	80/107	2011	03L253014AV300
803955-0004	GTC1446VMZ	Volkswagen	Crafter TDI	2.0D	80/107	2011	803955-0004
803955-0005	GTC1446VMZ	Volkswagen	Crafter TDI	2.0D	100/134	2011	03L253014AV351
803955-0007	GTC1446VMZ	Volkswagen	Crafter TDI	2.0D	100/134	2011	803955-0007
805775-0002	GTC1446VKZ	Seat	Exeo	-	-	2011	03L145721V400
806497-0001	GTB1449VZL	Peugeot	3008	-	-	2007	9688361580
806497-0002	GTB1449VZL	Peugeot	3008	-	-	2007	806497-0002
806497-0003	GTC1446VZ	Audi	A4	-	-	2011	806497-0003
806498-0001	GTB1449VZ	Ford	Mondeo	2.0D	120/161	2012	9671413780
806498-0003	GTB1449VZ	Ford	Galaxy	2.0D	120/161	2012	9671413780
806499-0001	GTB1449VLZ	Citroen	Jumper	-	-	2011	1609656880
806499-0002	GTB1449VZL	Citroen	Jumper	-	-	2011	9677063180
806500-0001	GTB1449VZL	Citroen	C4	-	-	2009	9674962080
806500-0002	GTB1449VZL	Citroen	C4	-	-	2009	9674962080
807489-0001	GTB1449VZ	Citroen	C4	-	-	2012	9675101580
807489-0002	GTB1449VZ	Citroen	C4	-	-	2000	9675101580
809603-0001	GTC1446MVZ	Volkswagen	Amarok	2.0D	90/122	2010	03L253014C
810164-0002	GTC1446VZ	JAC	Fudi F22	1.9B	-	2017	X191536
810164-0003	GTC1446VZ	JAC	Fudi F22	1.9B	-	2017	X191271
810164-0004	GTC1446VZ	JAC	Fudi F22	1.9B	-	2017	X10001370
815479-0001	GTC1446VZK	Great Wall	H5	2.0D	-	2013	1118100-XED12
815479-0002	GTC1446VZ	Great Wall	H5	2.0L	-	2000	1118100-E03-B1
815479-0004	GTC1446VZK	Great Wall	H5	2.0L	-	2000	1118100-XED15
815479-0005	GTC1446VZK	Great Wall	H5	2.0D	-	2013	1118100-XED12
815479-0006	GTC1446VZK	Great Wall	H5	2.0D	-	2013	1118100-AED30
815479-0007	GTC1446VZK	Great Wall	H5	2.0D	-	2013	1118100-XED12
815479-0008	GTC1446VZK	Great Wall	H5	2.0D	-	2013	1118100-XED30
815479-0010	GTC1446VZ	Great Wall	H5	2.0L	-	2000	815479-0010
817081-0001	GTC1446VKZ	Audi	A4	-	-	2011	03L145721A
817082-0001	GTC1446VKZ	Seat	Exeo	-	-	2011	03L145721C
818988-0001	GTC1446VKZ	Audi	A4	-	-	2011	03L145721AV100
818988-0002	GTC1446VKZ	Audi	A4	-	-	2011	818988-0002
818989-0001	GTC1446VKZ	Seat	Exeo	-	-	2011	03L145721CV100
818989-0002	GTC1446VKZ	Seat	Exeo	-	-	2011	818989-0002
819891-0005	GTD1449VZ	Volkswagen	Passat	2.0D	-	2012	04L253010E
819891-0009	GTD1449VZ	Volkswagen	Passat	2.0D	-	2012	04L253010E
821866-0001	GTD1449V	Volkswagen	Passat	-	-	2012	821866-0001
821866-0002	GTD1449V	Volkswagen	Passat	-	-	2012	821866-0002
821866-0003	GTD1449V	Volkswagen	Passat	-	-	2012	821866-0003
821866-0004	GTD1449V	Volkswagen	Passat	-	-	2012	04L 253 010H
821866-0009	GTD1449V	Volkswagen	Passat	-	-	2012	821866-0005
822051-0003	GTD1449VZ	Volkswagen	Golf	2.0D	-	2015	04L253010JV300
822051-0003	GTD1449V	Volkswagen	Golf	2.0D	-	2015	04L253010JV300
822051-0006	GTD1449VZ	Volkswagen	Scirocco	2.0D	-	2015	04L253056Q
822051-0006	GTD1449V	Volkswagen	Scirocco	2.0D	-	2015	04L253056Q
832453-0002	GTC1446VZ	Great Wall	H5	2.0L	-	2000	832453-0002
834227-0001	GTC1446VZK	SAIC	MAXUS V80/G10/T60	1.9D	-	2011-2016	834227-0001
834227-0001	GTC1446VZK	SAIC	MAXUS V80 / G10 / T60	1.9D	-	2011-2016	834227-0001
834227-0002	GTC1446VZK	SAIC	MAXUS V80/G10/T60	1.9D	-	2011-2016	834227-0002
834227-0002	GTC1446VZK	SAIC	MAXUS V80 / G10 / T60	1.9D	-	2011-2016	834227-0002
848144-0001	GTC1446VZK	SAIC	MAXUS V80/G10/T60	1.9D	-	2011-2016	848144-0001
848144-0001	GTC1446VZK	SAIC	MAXUS V80 / G10 / T60	1.9D	-	2011-2016	848144-0001
848184-0001	GTC1446VZK	SAIC	MAXUS V80/G10/T60	1.9D	-	2011-2016	X10000707
848184-0002	GTC1446VZK	SAIC	MAXUS V80/G10/T60	1.9D	-	2011-2016	10168923

Feedback

Dear visitors! We value your opinion and are ready to answer your questions and suggestions. Please leave your comments, and we will contact you as soon as possible.
