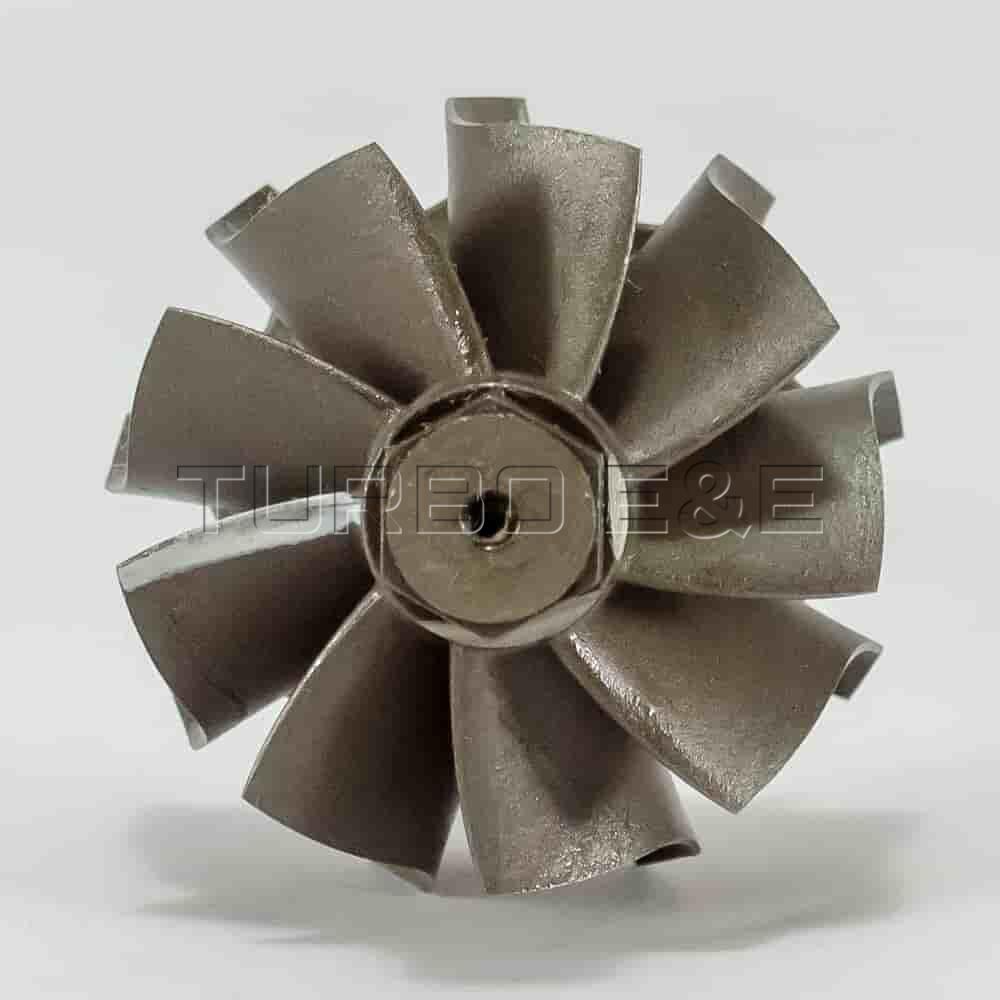

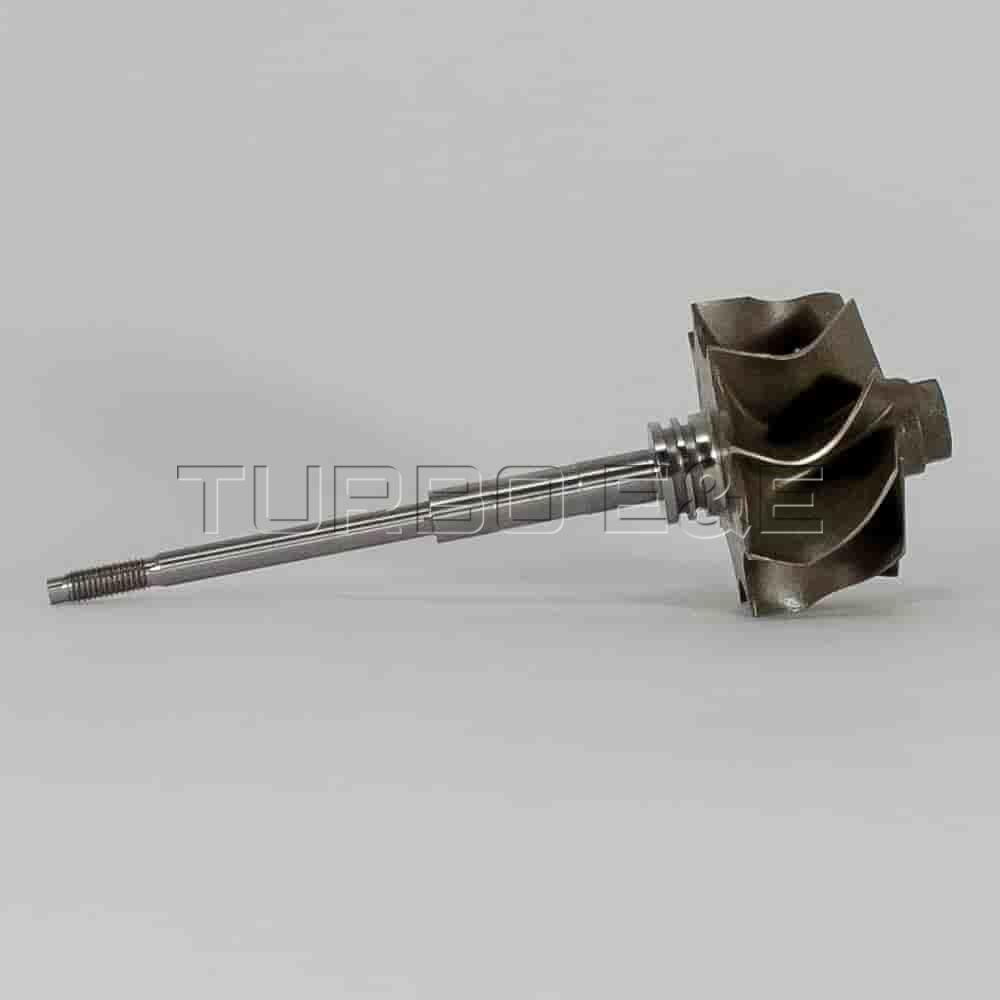

TW-0238

In stock

Prices are available for authorized users

Specifications

A, mm
Exducer Diameter
43.00
Exducer Diameter
B, mm
Inducer Diameter
47.00
Inducer Diameter
C, mm
Tip Height
8.45
Tip Height
D, mm
Journal Bearing
7.88
Journal Bearing
E, mm
CW Bore
5.08
CW Bore
F, mm
Shaft Thread
M5X0.8-LH
Shaft Thread
G, mm
Wheel Height
26.00
Wheel Height
H, mm
JB Shaft Length
42.1
JB Shaft Length
Blades
9

Note

All names, numbers, symbols and descriptions are for reference only and do not represent any part, part or assembly as a _product of these manufacturers. All dimensions are in millimeters

Usage

757608-0001
- Turbo model GTA2052GVK
- Car makeJeep
- Car model Grand Cherokee
- Engine displacement 3.0D
- Engine power, kW/HP 165/224
- Year of manufacture2003-2010
- OEMA6420902080
757608-0002
- Turbo model GTA2052GVK
- Car makeJeep
- Car model Grand Cherokee
- Engine displacement 3.0D
- Engine power, kW/HP 165/222
- Year of manufacture2005
- OEMA6420900280
757608-0003
- Turbo model GTA2052GVK
- Car makeMercedes-Benz
- Car model C-Class
- Engine displacement 3.0D
- Engine power, kW/HP 156/212
- Year of manufacture2005
- OEMA6420905980
757608-0004
- Turbo model GTA2052GVK
- Car makeMercedes-Benz
- Car model E-Class
- Engine displacement 3.0D
- Engine power, kW/HP 156/212
- Year of manufacture2005
- OEMA6420905280
757608-0005
- Turbo model GTA2052GVK
- Car makeMercedes-Benz
- Car model M-Class
- Engine displacement 3.0D
- Engine power, kW/HP 156/212
- Year of manufacture2005
- OEMA6420905780
757608-0006
- Turbo model GTA2052GVK
- Car makeMercedes-Benz
- Car model CLS320
- Engine displacement 3.0D
- Engine power, kW/HP 156/212
- Year of manufacture2005
- OEMA6420905280
761399-0001
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model S-Class 320 CDI (W221)
- Engine displacement 3.0D
- Engine power, kW/HP 165/224
- Year of manufacture2006-2008
- OEMA6420900180
761399-0002
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model S-Class 320 CDI (W221)
- Engine displacement 3.0D
- Engine power, kW/HP 165/224
- Year of manufacture2006-2008
- OEMA6420900680
765155-0004
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model S 320 CDI
- Engine displacement 3.0D
- Engine power, kW/HP 140/190
- Year of manufacture2002-2009
- OEMA6420901480
765155-0007
- Turbo model GTA2056VK
- Car makeChrysler
- Car model 300C CRD
- Engine displacement 3.0D
- Engine power, kW/HP 165/224
- Year of manufacture2003-2010
- OEMA6420901580
765155-0008
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model E-Class
- Engine displacement 3.0D
- Engine power, kW/HP 165/224
- Year of manufacture2006-2011
- OEMA6420902880
765156-0003
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model S-Class 320 CDI (W221)
- Engine displacement 3.0D
- Engine power, kW/HP 140/190
- Year of manufacture2006-2008
- OEMA6420904880
765156-0004
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model S-Class 320 CDI (W221)
- Engine displacement 3.0D
- Engine power, kW/HP 140/190
- Year of manufacture2006-2008
- OEMA6420901980
765156-0007
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model S-Class 320 CDI (W221)
- Engine displacement 3.0D
- Engine power, kW/HP 140/190
- Year of manufacture2006-2008
- OEMA6420901580
765156-0008
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model S-Class 320 CDI (W221)
- Engine displacement 3.0D
- Engine power, kW/HP 140/190
- Year of manufacture2006-2008
- OEMA6420901580
770895-0001
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model C Class
- Engine displacement 3.0D
- Engine power, kW/HP 165/221
- Year of manufacture2007
- OEMA6420902880
770895-0002
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model C Class
- Engine displacement 3.0D
- Engine power, kW/HP 165/221
- Year of manufacture2007
- OEMA6420902880
770895-0007
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model C Class
- Engine displacement 3.0D
- Engine power, kW/HP 165/221
- Year of manufacture2007
- OEMA6420902880
770895-0008
- Turbo model GTA2056VK
- Car makeMercedes-Benz
- Car model C Class
- Engine displacement 3.0D
- Engine power, kW/HP 165/221
- Year of manufacture2007
- OEMA6420902880

Turbo No.	Turbo model	Car make	Car model	Engine displacement	Engine power, kW/HP	Year of manufacture	OEM
757608-0001	GTA2052GVK	Jeep	Grand Cherokee	3.0D	165/224	2003-2010	A6420902080
757608-0002	GTA2052GVK	Jeep	Grand Cherokee	3.0D	165/222	2005	A6420900280
757608-0003	GTA2052GVK	Mercedes-Benz	C-Class	3.0D	156/212	2005	A6420905980
757608-0004	GTA2052GVK	Mercedes-Benz	E-Class	3.0D	156/212	2005	A6420905280
757608-0005	GTA2052GVK	Mercedes-Benz	M-Class	3.0D	156/212	2005	A6420905780
757608-0006	GTA2052GVK	Mercedes-Benz	CLS320	3.0D	156/212	2005	A6420905280
761399-0001	GTA2056VK	Mercedes-Benz	S-Class 320 CDI (W221)	3.0D	165/224	2006-2008	A6420900180
761399-0002	GTA2056VK	Mercedes-Benz	S-Class 320 CDI (W221)	3.0D	165/224	2006-2008	A6420900680
765155-0004	GTA2056VK	Mercedes-Benz	S 320 CDI	3.0D	140/190	2002-2009	A6420901480
765155-0007	GTA2056VK	Chrysler	300C CRD	3.0D	165/224	2003-2010	A6420901580
765155-0008	GTA2056VK	Mercedes-Benz	E-Class	3.0D	165/224	2006-2011	A6420902880
765156-0003	GTA2056VK	Mercedes-Benz	S-Class 320 CDI (W221)	3.0D	140/190	2006-2008	A6420904880
765156-0004	GTA2056VK	Mercedes-Benz	S-Class 320 CDI (W221)	3.0D	140/190	2006-2008	A6420901980
765156-0007	GTA2056VK	Mercedes-Benz	S-Class 320 CDI (W221)	3.0D	140/190	2006-2008	A6420901580
765156-0008	GTA2056VK	Mercedes-Benz	S-Class 320 CDI (W221)	3.0D	140/190	2006-2008	A6420901580
770895-0001	GTA2056VK	Mercedes-Benz	C Class	3.0D	165/221	2007	A6420902880
770895-0002	GTA2056VK	Mercedes-Benz	C Class	3.0D	165/221	2007	A6420902880
770895-0007	GTA2056VK	Mercedes-Benz	C Class	3.0D	165/221	2007	A6420902880
770895-0008	GTA2056VK	Mercedes-Benz	C Class	3.0D	165/221	2007	A6420902880
