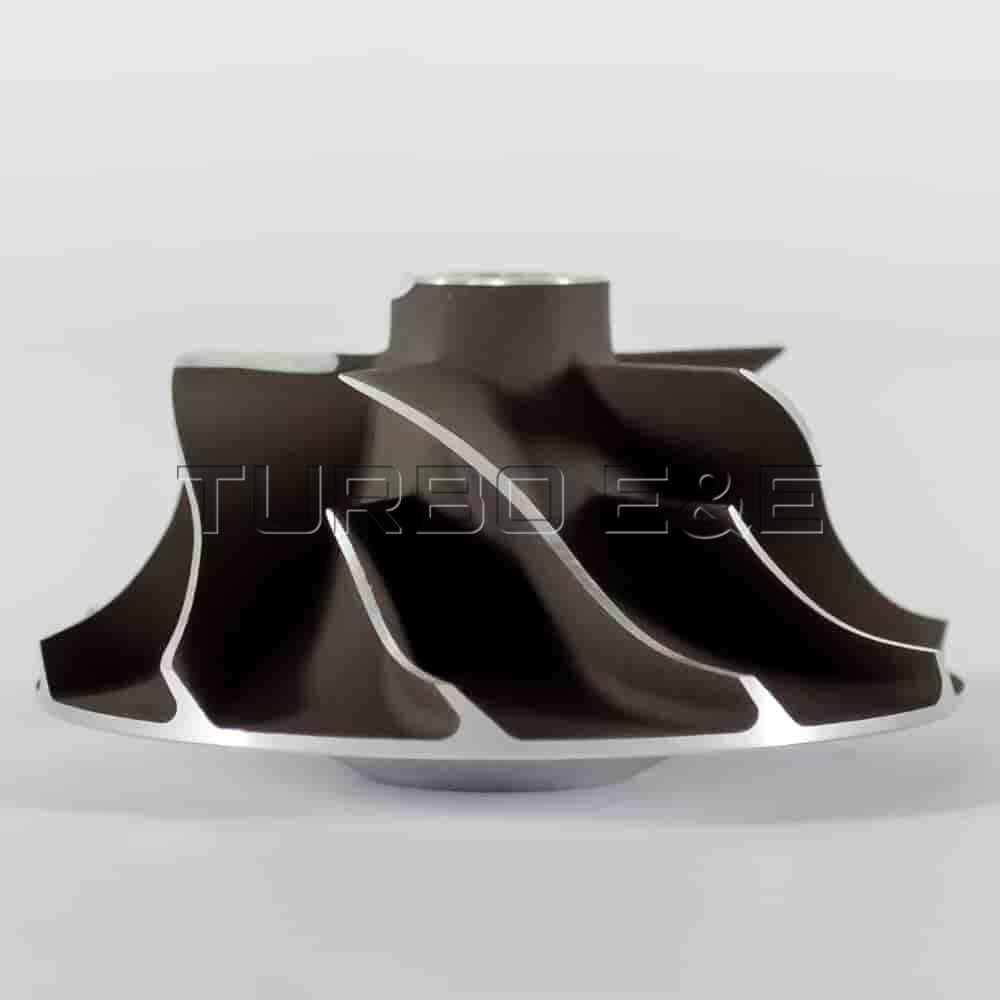

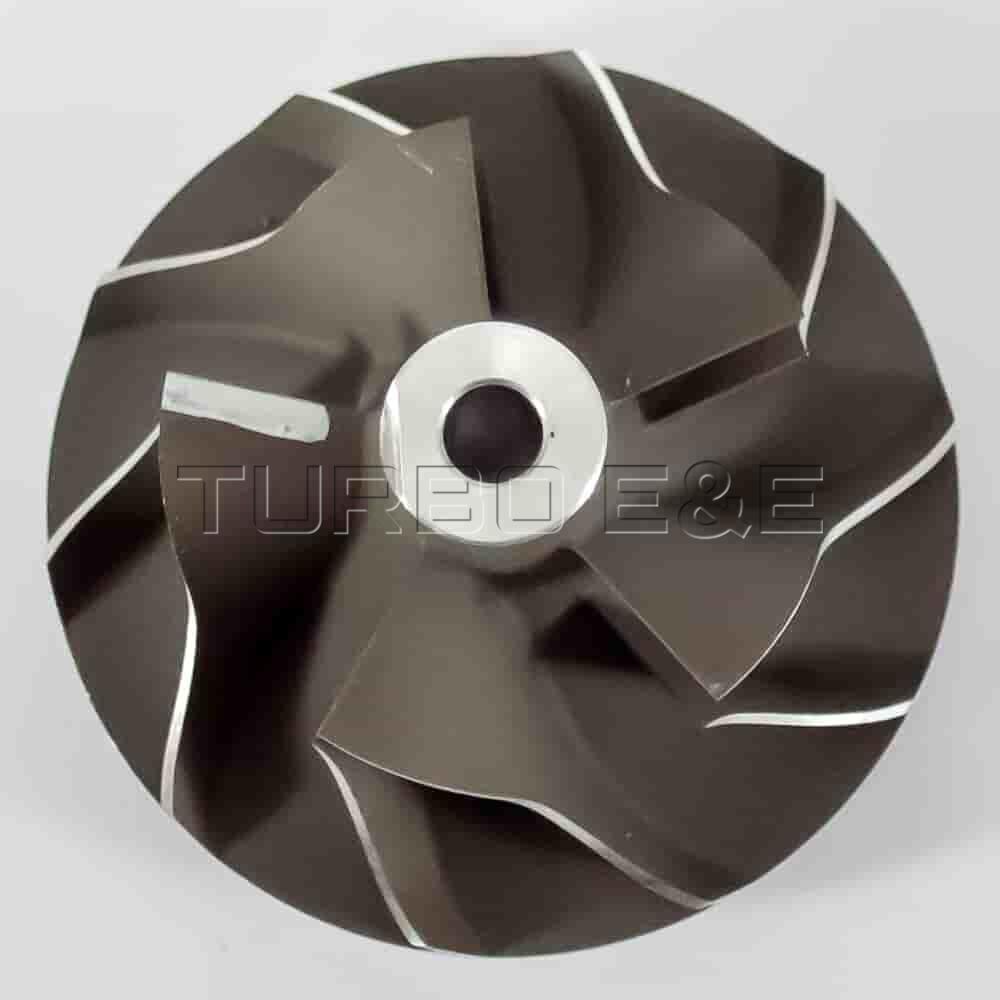

CW-0226

In stock

Prices are available for authorized users

Specifications

A, mm
inducer diameter
34.65
inducer diameter
B, mm
tip height
7.64-3.95
tip height
C, mm
exducer diameter
49.00
exducer diameter
D, mm
total height
26.40
total height
E, mm
shaft bore
5.088
shaft bore
Blades
5+5

Note

All names, numbers, symbols and descriptions are for reference only and do not represent any part, part or assembly as a _product of these manufacturers. All dimensions are in millimeters

Usage

736168-0002
- Turbo model GT1749MV
- Car makeAlfa Romeo
- Car model GT JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2005
- OEM55205177
736168-0003
- Turbo model GT1749MV
- Car makeAlfa Romeo
- Car model GT JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2005
- OEM71790772
740080-0001
- Turbo model GT1749MV
- Car makeFiat
- Car model Croma
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2001
- OEM55190871
740080-0002
- Turbo model GT1749MV
- Car makeFiat
- Car model Croma
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2004-2008
- OEM55190871
752814-0001
- Turbo model GT1749MV
- Car makeFiat
- Car model Stilo JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2002-2008
- OEM55193105
753519-0007
- Turbo model GTA1749VK
- Car makeFord
- Car model Transit
- Engine displacement 2.2D
- Engine power, kW/HP 95/130
- Year of manufacture2006
- OEM6C1Q6K682BC
753519-0008
- Turbo model GTA1749VK
- Car makeFord
- Car model Transit
- Engine displacement 2.2D
- Engine power, kW/HP 95/130
- Year of manufacture2006
- OEM6C1Q6K682BD
753519-0009
- Turbo model GTA1749VK
- Car makeFord
- Car model Transit
- Engine displacement 2.2D
- Engine power, kW/HP 95/130
- Year of manufacture2006
- OEM6C1Q6K682BE
754821-0001
- Turbo model GT1749MV
- Car makeAlfa Romeo
- Car model 159 JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2005-2008
- OEM55195268
755042-0001
- Turbo model GT1749MV
- Car makeFiat
- Car model Stilo JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2004
- OEM55196858
755042-0002
- Turbo model GT1749MV
- Car makeFiat
- Car model Croma JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2004
- OEM55196765
755042-0003
- Turbo model GT1749MV
- Car makeOpel
- Car model Astra
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2004
- OEM55205179
755373-0001
- Turbo model GT1749MV
- Car makeFiat
- Car model Stilo JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2004-2008
- OEM55195787
755373-0003
- Turbo model GT1749MV
- Car makeFiat
- Car model Stilo JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2004-2008
- OEM755373-0003
760822-0001
- Turbo model GT1749MV
- Car makeAlfa Romeo
- Car model 159 JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2005-2008
- OEM55200807
760822-0002
- Turbo model GT1749MV
- Car makeFiat
- Car model Grande Punto JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2005-2008
- OEM55200807
767835-0001
- Turbo model GT1749MV
- Car makeOpel
- Car model Signum
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2004
- OEM55190871
767835-0003
- Turbo model GT1749MV
- Car makeOpel
- Car model Astra
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2006
- OEM55205474
767835-0003
- Turbo model GT1749MV
- Car makeFiat
- Car model Croma / Stilo
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2006
- OEM55205474
767837-0001
- Turbo model GT1749MV
- Car makeFiat
- Car model Grande Punto JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2005-2008
- OEM55205475
767837-0002
- Turbo model GT1749MV
- Car makeFiat
- Car model Grande Punto
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2006
- OEM55205474
777251-0001
- Turbo model GT1749MV
- Car makeAlfa Romeo
- Car model 147 JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2005
- OEM55214061
777251-0002
- Turbo model GT1749MV
- Car makeAlfa Romeo
- Car model 147 JTD
- Engine displacement 1.9D
- Engine power, kW/HP 88/120
- Year of manufacture2005
- OEM71790772

Turbo No.	Turbo model	Car make	Car model	Engine displacement	Engine power, kW/HP	Year of manufacture	OEM
736168-0002	GT1749MV	Alfa Romeo	GT JTD	1.9D	88/120	2005	55205177
736168-0003	GT1749MV	Alfa Romeo	GT JTD	1.9D	88/120	2005	71790772
740080-0001	GT1749MV	Fiat	Croma	1.9D	88/120	2001	55190871
740080-0002	GT1749MV	Fiat	Croma	1.9D	88/120	2004-2008	55190871
752814-0001	GT1749MV	Fiat	Stilo JTD	1.9D	88/120	2002-2008	55193105
753519-0007	GTA1749VK	Ford	Transit	2.2D	95/130	2006	6C1Q6K682BC
753519-0008	GTA1749VK	Ford	Transit	2.2D	95/130	2006	6C1Q6K682BD
753519-0009	GTA1749VK	Ford	Transit	2.2D	95/130	2006	6C1Q6K682BE
754821-0001	GT1749MV	Alfa Romeo	159 JTD	1.9D	88/120	2005-2008	55195268
755042-0001	GT1749MV	Fiat	Stilo JTD	1.9D	88/120	2004	55196858
755042-0002	GT1749MV	Fiat	Croma JTD	1.9D	88/120	2004	55196765
755042-0003	GT1749MV	Opel	Astra	1.9D	88/120	2004	55205179
755373-0001	GT1749MV	Fiat	Stilo JTD	1.9D	88/120	2004-2008	55195787
755373-0003	GT1749MV	Fiat	Stilo JTD	1.9D	88/120	2004-2008	755373-0003
760822-0001	GT1749MV	Alfa Romeo	159 JTD	1.9D	88/120	2005-2008	55200807
760822-0002	GT1749MV	Fiat	Grande Punto JTD	1.9D	88/120	2005-2008	55200807
767835-0001	GT1749MV	Opel	Signum	1.9D	88/120	2004	55190871
767835-0003	GT1749MV	Opel	Astra	1.9D	88/120	2006	55205474
767835-0003	GT1749MV	Fiat	Croma / Stilo	-	-	2006	55205474
767837-0001	GT1749MV	Fiat	Grande Punto JTD	1.9D	88/120	2005-2008	55205475
767837-0002	GT1749MV	Fiat	Grande Punto	-	-	2006	55205474
777251-0001	GT1749MV	Alfa Romeo	147 JTD	1.9D	88/120	2005	55214061
777251-0002	GT1749MV	Alfa Romeo	147 JTD	1.9D	88/120	2005	71790772
