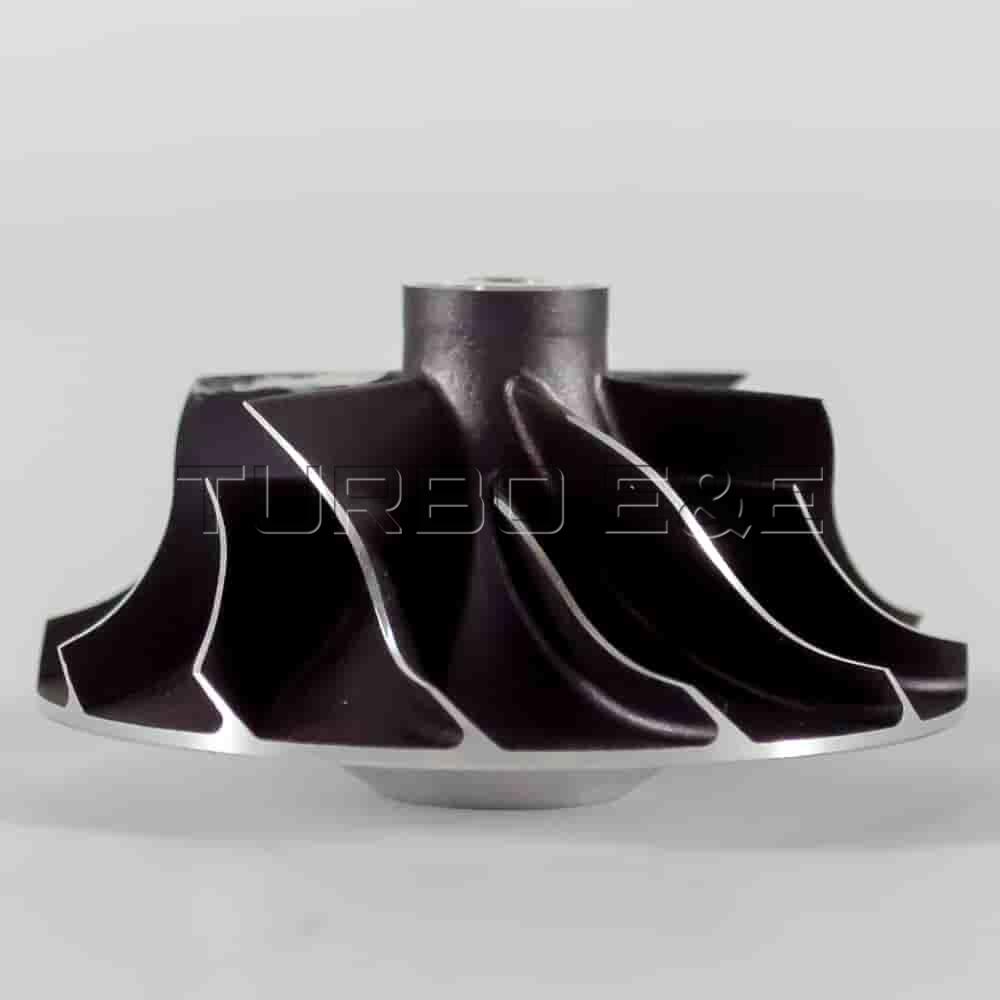

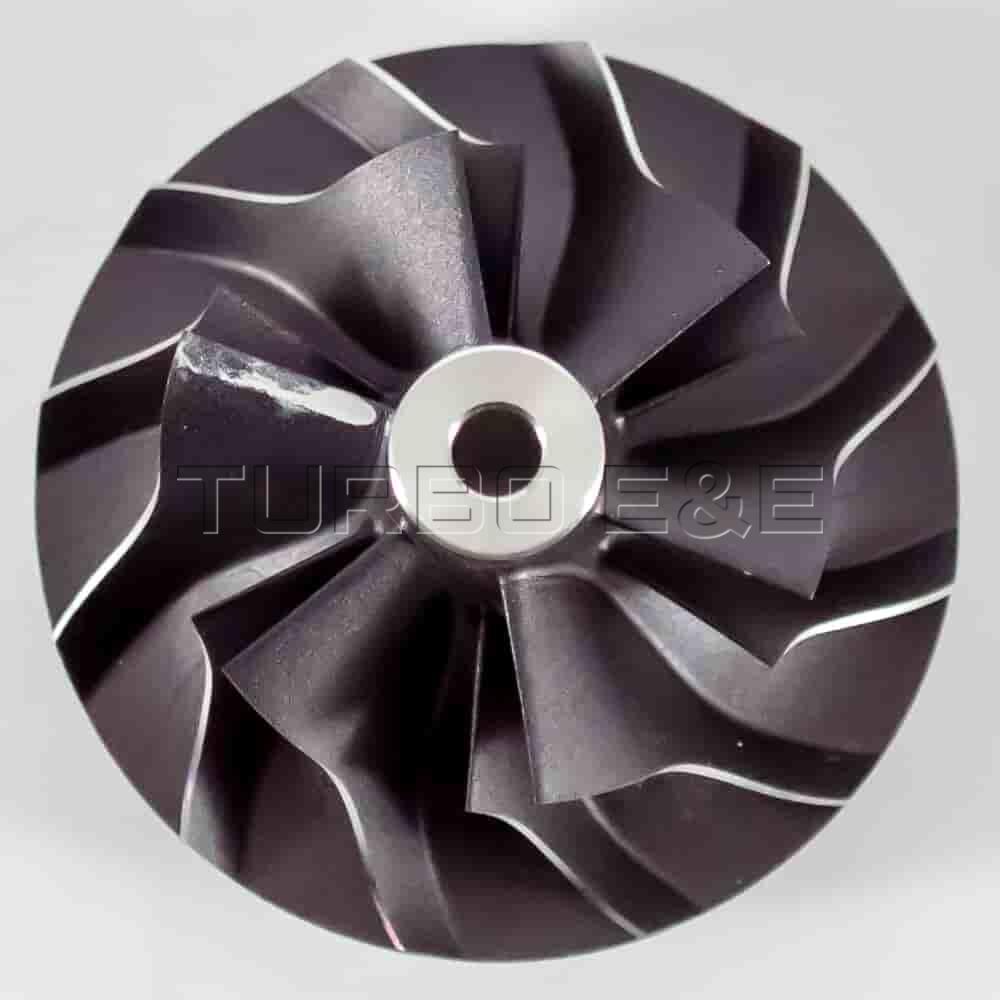

CW-0438

In stock

Prices are available for authorized users

Specifications

A, mm
inducer diameter
31.10
inducer diameter
B, mm
tip height
7.65-4
tip height
C, mm
exducer diameter
44.00
exducer diameter
D, mm
total height
24.10
total height
E, mm
shaft bore
4.080
shaft bore
Blades
6+6

Note

All names, numbers, symbols and descriptions are for reference only and do not represent any part, part or assembly as a _product of these manufacturers. All dimensions are in millimeters

Usage

775517-0001
- Turbo model GTC1244VZ
- Car makeSkoda
- Car model Octavia
- Engine displacement 1.6D
- Engine power, kW/HP 77/105
- Year of manufacture2009
- OEM03L253016T
775517-0002
- Turbo model GTC1244VZ
- Car makeAudi
- Car model A3
- Engine displacement 1.6D
- Engine power, kW/HP 77/105
- Year of manufacture2009
- OEM03L253016T
775517-0005
- Turbo model GTC1244MVKZ
- Car makeVolkswagen
- Car model Passat
- Engine displacement 1.6D
- Engine power, kW/HP -
- Year of manufacture2010
- OEM03L253016T
784011-0005
- Turbo model GTC1244VZ
- Car makePeugeot
- Car model 308
- Engine displacement 1.6D
- Engine power, kW/HP 83/111
- Year of manufacture2009
- OEM9686120680
794097-0002
- Turbo model GTB1244VZ
- Car makeKIA
- Car model Sportage
- Engine displacement 1.7D
- Engine power, kW/HP 86/115
- Year of manufacture2010
- OEM28201-2A850
794097-0003
- Turbo model GTB1244VZ
- Car makeHyundai
- Car model Tucson
- Engine displacement 1.7D
- Engine power, kW/HP 86/115
- Year of manufacture2010
- OEM28201-2A850
795680-0003
- Turbo model GTC1444VZ
- Car makeVolvo
- Car model S70
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2010
- OEM31312713
806291-0001
- Turbo model GTC1244VZ
- Car makePeugeot
- Car model 308 Hdi
- Engine displacement 1.6D
- Engine power, kW/HP 82/110
- Year of manufacture2009
- OEM968612068006
806291-0002
- Turbo model GTC1244VZ
- Car makePeugeot
- Car model 308 Hdi
- Engine displacement 1.6D
- Engine power, kW/HP 82/110
- Year of manufacture2009
- OEM968612068006
806291-0003
- Turbo model GTC1244VZ
- Car makePeugeot
- Car model 308 Hdi
- Engine displacement 1.6D
- Engine power, kW/HP 82/110
- Year of manufacture2009
- OEM0375P7
824060-0005
- Turbo model GTC1244VZ
- Car makeFord
- Car model C-Max
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2012
- OEMCV6Q6K682AA
824060-0006
- Turbo model GTC1244VZ
- Car makeFord
- Car model C-Max
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2012
- OEMCV6Q6K682AB
824060-0007
- Turbo model GTC1244VZ
- Car makeFord
- Car model S-Max
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2012
- OEMCV6Q6K682AC
829886-0001
- Turbo model GTC1244MVKZ
- Car makeVolkswagen
- Car model Polo
- Engine displacement 1.6D
- Engine power, kW/HP -
- Year of manufacture2015
- OEM03L253014F

Turbo No.	Turbo model	Car make	Car model	Engine displacement	Engine power, kW/HP	Year of manufacture	OEM
775517-0001	GTC1244VZ	Skoda	Octavia	1.6D	77/105	2009	03L253016T
775517-0002	GTC1244VZ	Audi	A3	1.6D	77/105	2009	03L253016T
775517-0005	GTC1244MVKZ	Volkswagen	Passat	1.6D	-	2010	03L253016T
784011-0005	GTC1244VZ	Peugeot	308	1.6D	83/111	2009	9686120680
794097-0002	GTB1244VZ	KIA	Sportage	1.7D	86/115	2010	28201-2A850
794097-0003	GTB1244VZ	Hyundai	Tucson	1.7D	86/115	2010	28201-2A850
795680-0003	GTC1444VZ	Volvo	S70	-	-	2010	31312713
806291-0001	GTC1244VZ	Peugeot	308 Hdi	1.6D	82/110	2009	968612068006
806291-0002	GTC1244VZ	Peugeot	308 Hdi	1.6D	82/110	2009	968612068006
806291-0003	GTC1244VZ	Peugeot	308 Hdi	1.6D	82/110	2009	0375P7
824060-0005	GTC1244VZ	Ford	C-Max	-	-	2012	CV6Q6K682AA
824060-0006	GTC1244VZ	Ford	C-Max	-	-	2012	CV6Q6K682AB
824060-0007	GTC1244VZ	Ford	S-Max	-	-	2012	CV6Q6K682AC
829886-0001	GTC1244MVKZ	Volkswagen	Polo	1.6D	-	2015	03L253014F
