CW-0390

CW-0390

  • CW-0390
  • CW-0390
  • CW-0390
  • CW-0390

CW-0390

In stock

Prices are available for authorized users

Category

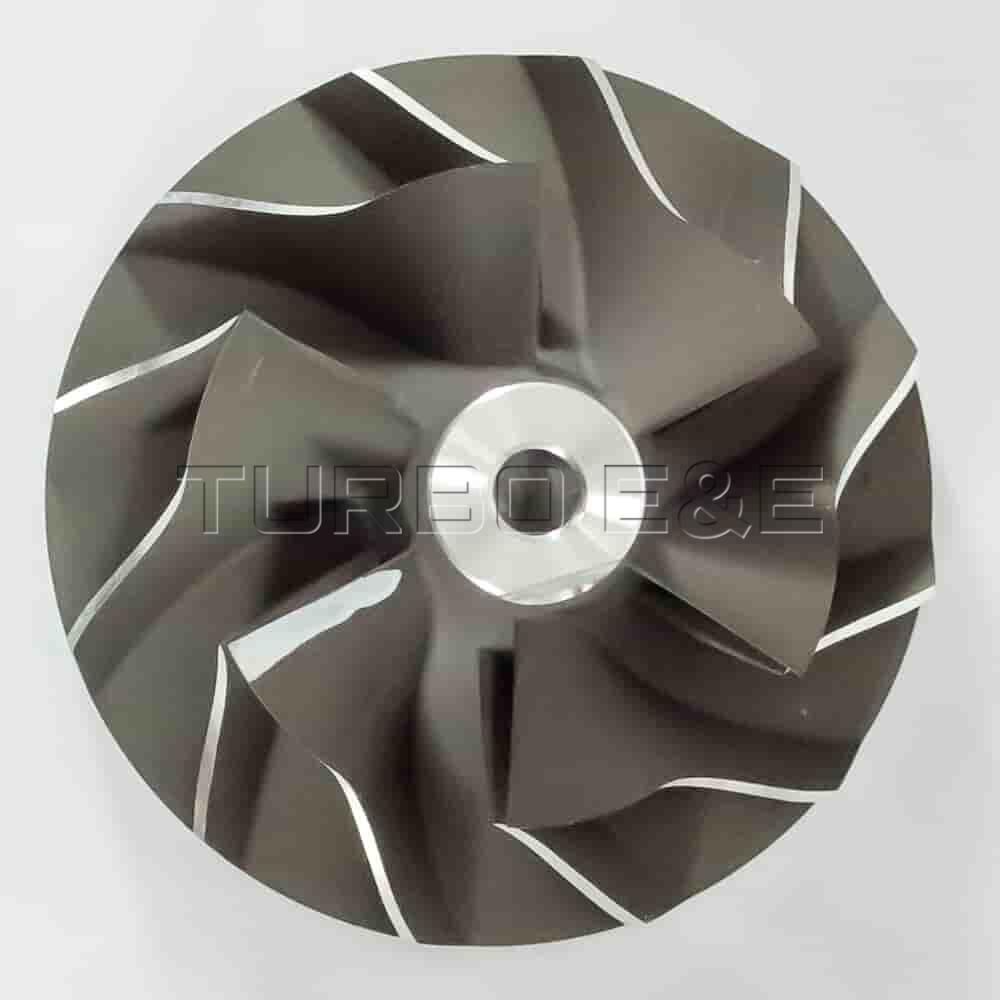

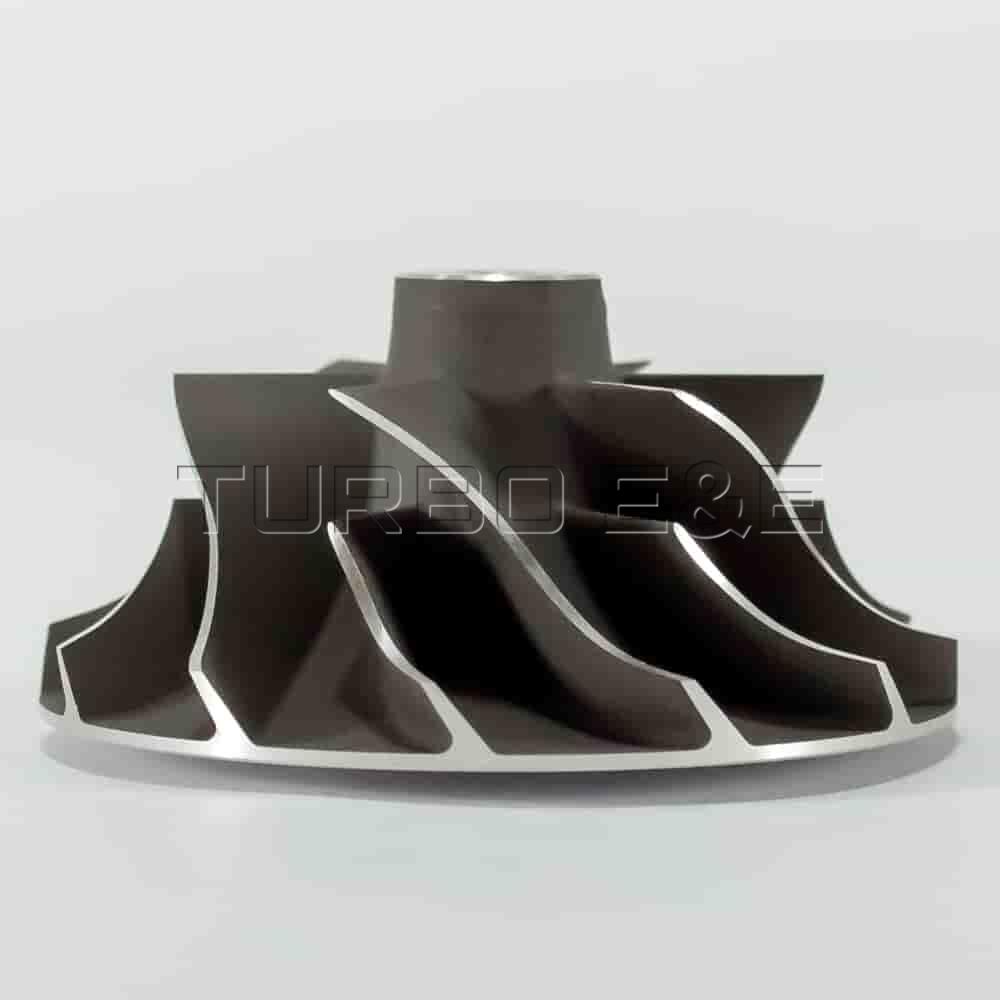

COMPRESSOR WHEEL

Specifications

  • A, mm

    inducer diameter
    39.70

  • B, mm

    tip height
    7.3-2.4

  • C, mm

    exducer diameter
    56.00

  • D, mm

    total height
    29.30

  • E, mm

    shaft bore
    5.088

  • Blades

    6+6

Note

All names, numbers, symbols and descriptions are for reference only and do not represent any part, part or assembly as a _product of these manufacturers. All dimensions are in millimeters

Usage

  • 709837-0001
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model E-Class & M class
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture1999-2003
    • OEMA6120960299
  • 709837-0002
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model E270 CDI
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture1999-2003
    • OEMA6120960299
  • 709837-0003
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model M class
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture2003-
    • OEMA6120960299
  • 709837-0004
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model Sprinter 416
    • Engine displacement 2.7D
    • Engine power, kW/HP -
    • Year of manufacture2002-2004
    • OEMA6120960399
  • 709838-0001
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model Sprinter Van
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture2000-2004
    • OEMA6120960399
  • 709838-0002
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model Sprinter Van
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture2000-2004
    • OEMA6120960399
  • 709838-0003
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model Sprinter Van
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture2000-2004
    • OEMA6120960399
  • 709838-0004
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model Sprinter Van
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture2000-2004
    • OEMA6120960399
  • 709838-0005
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model Sprinter Van
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture2000-2004
    • OEMA6120960399
  • 709838-0006
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model Sprinter Van
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture2000-2004
    • OEMA6120960399
  • 709838-0015
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model Sprinter 616
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture2004-
    • OEMA6120960399
  • 721020-0001
    • Turbo model GT2256V
    • Car makeMercedes-Benz
    • Car model LTC Brazil
    • Engine displacement 2.7D
    • Engine power, kW/HP 125/170
    • Year of manufacture2000
    • OEMA6120960699
  • 729403-0001
    • Turbo model GTA2256V
    • Car makeMercedes-Benz
    • Car model Sprinter LTC
    • Engine displacement 2.7D
    • Engine power, kW/HP 115/156
    • Year of manufacture2003
    • OEMA6120960999
  • 729403-0002
    • Turbo model GTA2256V
    • Car makeMercedes-Benz
    • Car model Sprinter LTC
    • Engine displacement 2.7D
    • Engine power, kW/HP 115/156
    • Year of manufacture2003
    • OEMA6120960999
  • 729403-0003
    • Turbo model GTA2256V
    • Car makeMercedes-Benz
    • Car model Sprinter LTC
    • Engine displacement 2.7D
    • Engine power, kW/HP 115/156
    • Year of manufacture2003
    • OEMA6120960999
Turbo No.Turbo modelCar makeCar modelEngine displacementEngine power, kW/HPYear of manufactureOEM
709837-0001
GT2256V
Mercedes-Benz
E-Class & M class
2.7D
125/170
1999-2003
A6120960299
709837-0002
GT2256V
Mercedes-Benz
E270 CDI
2.7D
125/170
1999-2003
A6120960299
709837-0003
GT2256V
Mercedes-Benz
M class
2.7D
125/170
2003-
A6120960299
709837-0004
GT2256V
Mercedes-Benz
Sprinter 416
2.7D
-
2002-2004
A6120960399
709838-0001
GT2256V
Mercedes-Benz
Sprinter Van
2.7D
125/170
2000-2004
A6120960399
709838-0002
GT2256V
Mercedes-Benz
Sprinter Van
2.7D
125/170
2000-2004
A6120960399
709838-0003
GT2256V
Mercedes-Benz
Sprinter Van
2.7D
125/170
2000-2004
A6120960399
709838-0004
GT2256V
Mercedes-Benz
Sprinter Van
2.7D
125/170
2000-2004
A6120960399
709838-0005
GT2256V
Mercedes-Benz
Sprinter Van
2.7D
125/170
2000-2004
A6120960399
709838-0006
GT2256V
Mercedes-Benz
Sprinter Van
2.7D
125/170
2000-2004
A6120960399
709838-0015
GT2256V
Mercedes-Benz
Sprinter 616
2.7D
125/170
2004-
A6120960399
721020-0001
GT2256V
Mercedes-Benz
LTC Brazil
2.7D
125/170
2000
A6120960699
729403-0001
GTA2256V
Mercedes-Benz
Sprinter LTC
2.7D
115/156
2003
A6120960999
729403-0002
GTA2256V
Mercedes-Benz
Sprinter LTC
2.7D
115/156
2003
A6120960999
729403-0003
GTA2256V
Mercedes-Benz
Sprinter LTC
2.7D
115/156
2003
A6120960999
