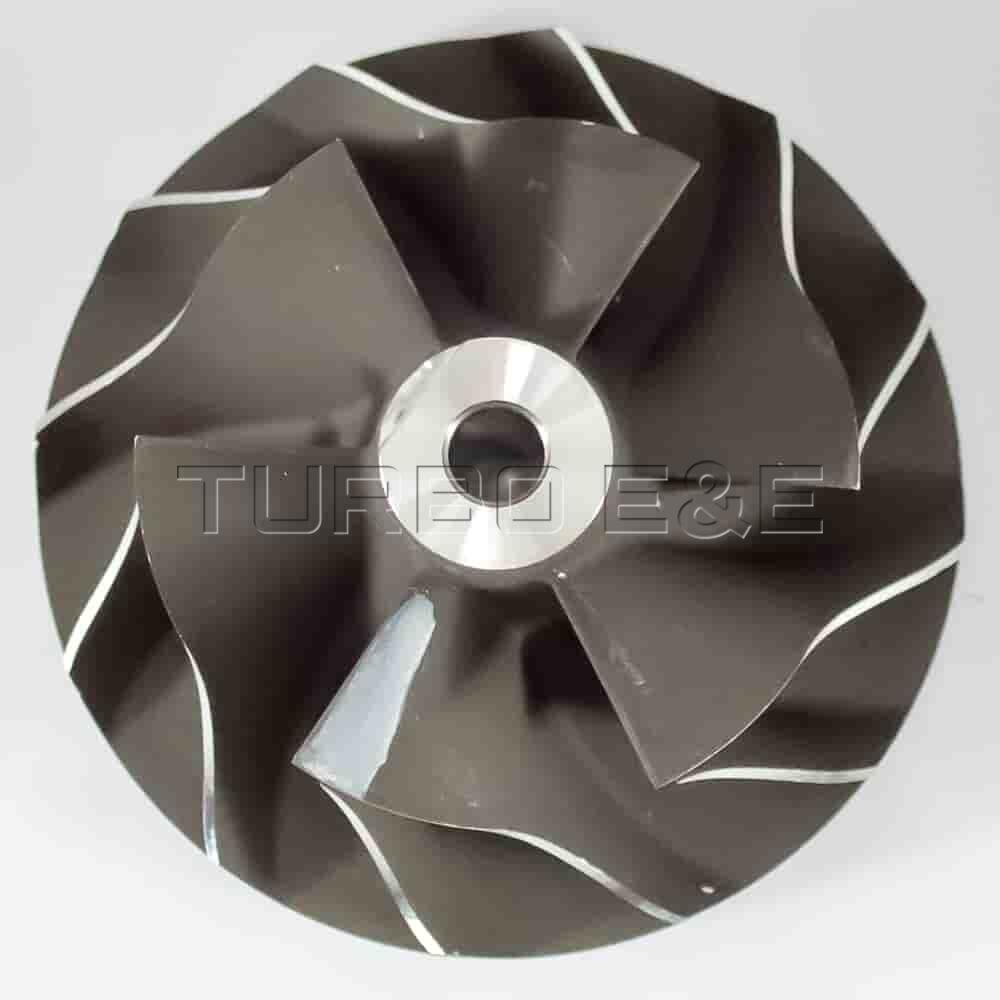

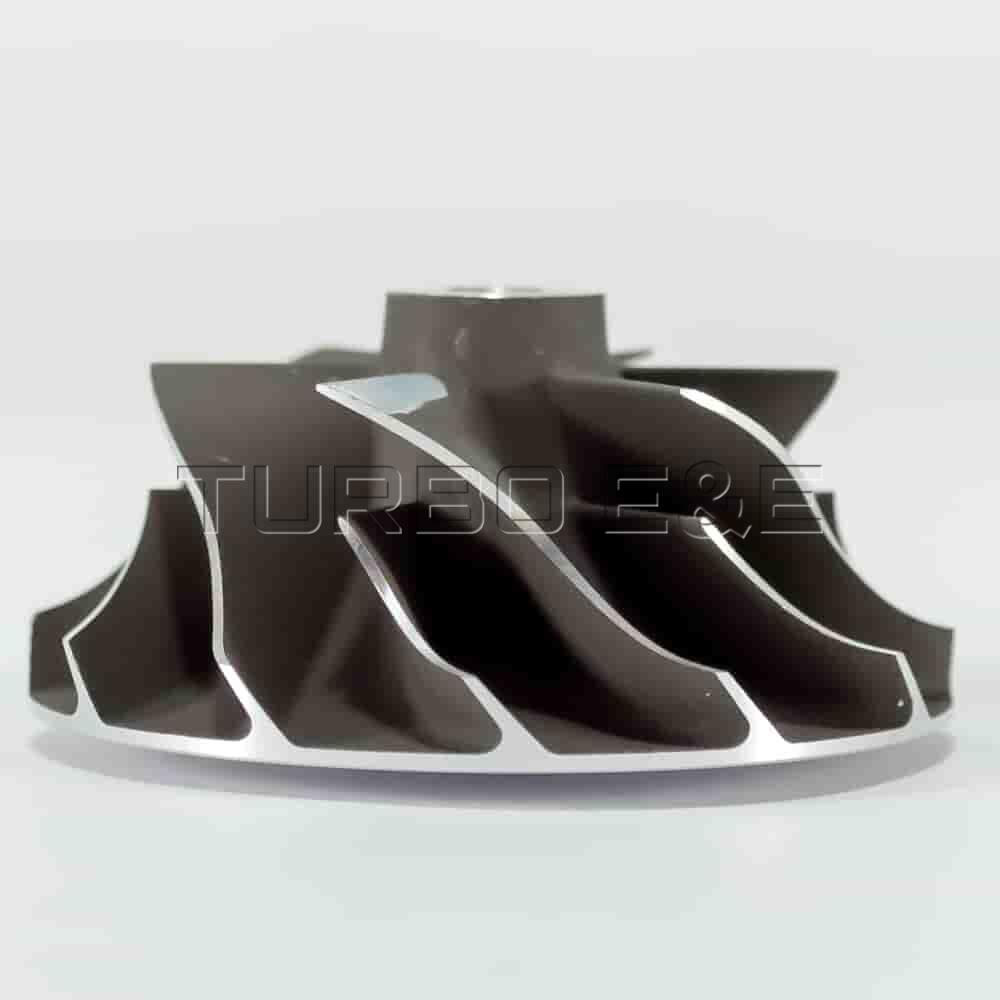

CW-0028-1

In stock

Prices are available for authorized users

Specifications

A, mm
inducer diameter
38.60
inducer diameter
B, mm
tip height
7.42-2.4
tip height
C, mm
exducer diameter
52.00
exducer diameter
D, mm
total height
26.10
total height
E, mm
shaft bore
5.088
shaft bore
Blades
6+6

Note

All names, numbers, symbols and descriptions are for reference only and do not represent any part, part or assembly as a _product of these manufacturers. All dimensions are in millimeters

Usage

452204-0001
- Turbo model GT1752S
- Car makeSaab
- Car model 9.5
- Engine displacement 2.0D
- Engine power, kW/HP 110/150
- Year of manufacture1997-2003
- OEM9172123
452204-0003
- Turbo model GT1752S
- Car makeSaab
- Car model 9.3
- Engine displacement 2.0D
- Engine power, kW/HP 110/150
- Year of manufacture1997-2001
- OEM9172123/5955703
452204-0004
- Turbo model GT1752S
- Car makeSaab
- Car model 9.5
- Engine displacement 2.0D
- Engine power, kW/HP 110/150
- Year of manufacture1997-2003
- OEM9172123
452204-0005
- Turbo model GT1752S
- Car makeSaab
- Car model 9.3
- Engine displacement 2.0D
- Engine power, kW/HP 110/150
- Year of manufacture1997-2003
- OEM5955703
452204-0007
- Turbo model GT1752S
- Car makeSaab
- Car model 9.3
- Engine displacement 2.0D
- Engine power, kW/HP 110/150
- Year of manufacture1997-2003
- OEM5955703
454061-0001
- Turbo model GT1752H
- Car makeFiat
- Car model Ducato II
- Engine displacement 2.8D
- Engine power, kW/HP 76/103
- Year of manufacture1997-2006
- OEM99460981
454061-0003
- Turbo model GT1752H
- Car makeIveco
- Car model Daily
- Engine displacement 2.8D
- Engine power, kW/HP -
- Year of manufacture1995
- OEM99438906
454061-0004
- Turbo model GT1752H
- Car makeFiat
- Car model Ducato
- Engine displacement 2.8D
- Engine power, kW/HP -
- Year of manufacture1996
- OEM454061-0004
454061-0006
- Turbo model GT1752H
- Car makeFiat
- Car model Ducato II
- Engine displacement 2.8D
- Engine power, kW/HP 84/114
- Year of manufacture1996
- OEM7701044612
454061-0007
- Turbo model GT1752H
- Car makeFiat
- Car model Ducato II
- Engine displacement 2.8D
- Engine power, kW/HP 90/122
- Year of manufacture1996
- OEM7701044612
454061-0008
- Turbo model GT1752H
- Car makeIveco
- Car model Daily
- Engine displacement 2.8D
- Engine power, kW/HP 76/103
- Year of manufacture1996
- OEM99460981
454061-0009
- Turbo model GT1752H
- Car makeIveco
- Car model Daily
- Engine displacement 2.8D
- Engine power, kW/HP 76/103
- Year of manufacture1996
- OEM99460981
454061-0010
- Turbo model GT1752H
- Car makeFiat
- Car model Ducato JTD
- Engine displacement 2.8D
- Engine power, kW/HP 84/114
- Year of manufacture1997-2006
- OEM7701044612
454061-0011
- Turbo model GT1752H
- Car makeFiat
- Car model Ducato JTD
- Engine displacement 2.8D
- Engine power, kW/HP 90/122
- Year of manufacture1997-2006
- OEM7701044612
454061-0012
- Turbo model GT1752H
- Car makeFiat
- Car model Ducato JTD
- Engine displacement 2.8D
- Engine power, kW/HP 76/103
- Year of manufacture1997-2006
- OEM7701044612
454061-0014
- Turbo model GT1752H
- Car makeNaveco
- Car model Daily
- Engine displacement 2.8D
- Engine power, kW/HP 84/114
- Year of manufacture1996
- OEM500385898
454135-0001
- Turbo model GT2052V
- Car makeAudi
- Car model A4
- Engine displacement 2.5D
- Engine power, kW/HP 110/150
- Year of manufacture1997-2003
- OEM059145701C
454135-0002
- Turbo model GT2052V
- Car makeVolkswagen
- Car model Passat TDI
- Engine displacement 2.5D
- Engine power, kW/HP 110/150
- Year of manufacture1997-2004
- OEM059145701C
454135-0006
- Turbo model GT2052V
- Car makeAudi
- Car model A4
- Engine displacement 2.5D
- Engine power, kW/HP 110/150
- Year of manufacture1997-2001
- OEM059145701G
454192-0001
- Turbo model GT2252V(S1)
- Car makeVolkswagen
- Car model T4 Transporter
- Engine displacement 2.5D
- Engine power, kW/HP 111/151
- Year of manufacture1998-2003
- OEM074145703E
454192-0002
- Turbo model GT2252V(S1)
- Car makeVolkswagen
- Car model T4 Transporter
- Engine displacement 2.5D
- Engine power, kW/HP 111/151
- Year of manufacture2001-
- OEM074145703G
454192-0005
- Turbo model GT2252V(S1)
- Car makeVolkswagen
- Car model T4 Transporter
- Engine displacement 2.5D
- Engine power, kW/HP 111/151
- Year of manufacture1998-2003
- OEM074145703EV248
454192-0006
- Turbo model GT2252V(S1)
- Car makeVolkswagen
- Car model T4 Transporter
- Engine displacement 2.5D
- Engine power, kW/HP 111/151
- Year of manufacture2003-
- OEM074145703G
454192-0007
- Turbo model GT2252V(S1)
- Car makeVolkswagen
- Car model T4 Transporter
- Engine displacement 2.5D
- Engine power, kW/HP 111/151
- Year of manufacture2003-
- OEM074145703E
454192-0008
- Turbo model GT2252V(S1)
- Car makeVolkswagen
- Car model T4 Transporter
- Engine displacement 2.5D
- Engine power, kW/HP 111/151
- Year of manufacture2003-
- OEM074145703G
704594-0001
- Turbo model GT2052V
- Car makeSteyr
- Car model Ship Diesel engine
- Engine displacement 2.5D
- Engine power, kW/HP 110/150
- Year of manufacture2000
- OEM059145701C
704594-0004
- Turbo model GT2052V
- Car makeNissan
- Car model Patriot
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture1999
- OEM704594-0004
704594-0005
- Turbo model GT2052V
- Car makeNissan
- Car model Patriot
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture1999
- OEM704594-0005
704594-0009
- Turbo model GT2052V
- Car makeNissan
- Car model Patriot
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture1999
- OEM704594-0009
705954-0001
- Turbo model GT2052V
- Car makeNissan
- Car model Terrano Di
- Engine displacement 3.0D
- Engine power, kW/HP 125/168
- Year of manufacture1999
- OEM14411-2W203
705954-0002
- Turbo model GT2052V
- Car makeNissan
- Car model Mistral/Terrano
- Engine displacement 3.0D
- Engine power, kW/HP 125/168
- Year of manufacture1999
- OEM144112W203
705954-0003
- Turbo model GT2052V
- Car makeNissan
- Car model Mistral/Terrano
- Engine displacement 3.0D
- Engine power, kW/HP 125/168
- Year of manufacture1999
- OEM144112W203
705954-0004
- Turbo model GT2052V
- Car makeNissan
- Car model Mistral/Terrano
- Engine displacement 3.0D
- Engine power, kW/HP 125/168
- Year of manufacture1999
- OEM144112W203
705954-0005
- Turbo model GT2052V
- Car makeNissan
- Car model Patrol/Safari
- Engine displacement 3.0D
- Engine power, kW/HP 125/170
- Year of manufacture1999
- OEM14411-VC100
705954-0006
- Turbo model GT2052V
- Car makeNissan
- Car model Mistral/Terrano
- Engine displacement 3.0D
- Engine power, kW/HP 125/168
- Year of manufacture1999
- OEM144112W203
705954-0007
- Turbo model GT2052V
- Car makeNissan
- Car model Mistral/Terrano
- Engine displacement 3.0D
- Engine power, kW/HP 125/168
- Year of manufacture1999
- OEM144112W203
705954-0008
- Turbo model GT2052V
- Car makeNissan
- Car model Patrol/Safari
- Engine displacement 3.0D
- Engine power, kW/HP 110/150
- Year of manufacture1999-2009
- OEM14411VC100
705954-0009
- Turbo model GT2052V
- Car makeNissan
- Car model Patrol/Safari
- Engine displacement 3.0D
- Engine power, kW/HP 110/150
- Year of manufacture1999-2009
- OEM14411VC100
705954-0010
- Turbo model GT2052V
- Car makeNissan
- Car model Mistral/Terrano
- Engine displacement 3.0D
- Engine power, kW/HP 125/170
- Year of manufacture1999
- OEM14411-2W203
705954-0011
- Turbo model GT2052V
- Car makeNissan
- Car model Patrol/Safari
- Engine displacement 3.0D
- Engine power, kW/HP 125/170
- Year of manufacture1999
- OEM14411-VC100
705954-0012
- Turbo model GT2052V
- Car makeNissan
- Car model Patrol
- Engine displacement 3.0D
- Engine power, kW/HP 125/168
- Year of manufacture1999
- OEM144112W203
705954-0013
- Turbo model GT2052V
- Car makeNissan
- Car model Patrol/Safari
- Engine displacement 3.0D
- Engine power, kW/HP 110/150
- Year of manufacture1999
- OEM14411VC100
705954-0014
- Turbo model GT2052V
- Car makeNissan
- Car model Safari
- Engine displacement 3.0D
- Engine power, kW/HP 125/168
- Year of manufacture1999
- OEM14411-2W203
705954-0015
- Turbo model GT2052V
- Car makeNissan
- Car model Patrol/Safari
- Engine displacement 3.0D
- Engine power, kW/HP 110/150
- Year of manufacture1999
- OEM14411VC100
705954-0016
- Turbo model GT2052V
- Car makeNissan
- Car model Patrol
- Engine displacement 3.0D
- Engine power, kW/HP 125/168
- Year of manufacture1999
- OEM14411-VC100
705954-0017
- Turbo model GT2052V
- Car makeNissan
- Car model Patrol
- Engine displacement 3.0D
- Engine power, kW/HP 110/150
- Year of manufacture2000-2009
- OEM14411VB100
708162-0001
- Turbo model GT1752S
- Car makeNaveco
- Car model Daily
- Engine displacement 2.8D
- Engine power, kW/HP -
- Year of manufacture1996
- OEM99449169
708163-0001
- Turbo model GT1752S
- Car makeNaveco
- Car model Daily
- Engine displacement 2.8D
- Engine power, kW/HP -
- Year of manufacture1996
- OEM 99449170
710641-0001
- Turbo model GT2052
- Car makeSsangYong
- Car model Rexton R290
- Engine displacement 2.9D
- Engine power, kW/HP 120/163
- Year of manufacture2002
- OEMA6620903280
710641-0002
- Turbo model GT2052
- Car makeSsangYong
- Car model Rexton R290
- Engine displacement 2.9D
- Engine power, kW/HP 120/163
- Year of manufacture2002
- OEMA6620903280
710641-0003
- Turbo model GT2052
- Car makeSsangYong
- Car model Rexton R290
- Engine displacement 2.9D
- Engine power, kW/HP 120/163
- Year of manufacture2002
- OEMA6620903280
710641-0004
- Turbo model GT2052
- Car makeSsangYong
- Car model Rexton R290
- Engine displacement 2.9D
- Engine power, kW/HP 120/163
- Year of manufacture2002
- OEMA6620903280
724352-0001
- Turbo model GT2052S
- Car makeSsang Yong
- Car model MS E-III 2
- Engine displacement 2.9L
- Engine power, kW/HP -
- Year of manufacture2002
- OEMA6620903680
724352-0004
- Turbo model GT2052S
- Car makeSsang Yong
- Car model MS E-III 2
- Engine displacement 2.9L
- Engine power, kW/HP -
- Year of manufacture2001
- OEMA6620903680
724353-0001
- Turbo model GT2052S
- Car makeSsangYong
- Car model Korando
- Engine displacement 2.9D
- Engine power, kW/HP 88/120
- Year of manufacture2001
- OEMA6620903780
724353-0002
- Turbo model GT2052S
- Car makeSsangYong
- Car model Korando
- Engine displacement 2.9D
- Engine power, kW/HP 95/130
- Year of manufacture2001
- OEMA6620903780
724353-0004
- Turbo model GT2052S
- Car makeSsang Yong
- Car model Korando
- Engine displacement 2.9L
- Engine power, kW/HP -
- Year of manufacture2002
- OEMA6620903780
725305-0001
- Turbo model GT1752S
- Car makeIveco
- Car model Daily
- Engine displacement 2.8TC
- Engine power, kW/HP -
- Year of manufacture2000
- OEM500321799
725305-0002
- Turbo model GT1752S
- Car makeIveco
- Car model Daily
- Engine displacement 2.8TC
- Engine power, kW/HP -
- Year of manufacture2001
- OEM725305-0002
725305-0003
- Turbo model GT1752S
- Car makeIveco
- Car model Daily
- Engine displacement 2.8TC
- Engine power, kW/HP -
- Year of manufacture2002
- OEM500321799
725305-0005
- Turbo model GT1752S
- Car makeRenault
- Car model Master
- Engine displacement 2.8TC
- Engine power, kW/HP -
- Year of manufacture2003
- OEM725305-0005

Turbo No.	Turbo model	Car make	Car model	Engine displacement	Engine power, kW/HP	Year of manufacture	OEM
452204-0001	GT1752S	Saab	9.5	2.0D	110/150	1997-2003	9172123
452204-0003	GT1752S	Saab	9.3	2.0D	110/150	1997-2001	9172123/5955703
452204-0004	GT1752S	Saab	9.5	2.0D	110/150	1997-2003	9172123
452204-0005	GT1752S	Saab	9.3	2.0D	110/150	1997-2003	5955703
452204-0007	GT1752S	Saab	9.3	2.0D	110/150	1997-2003	5955703
454061-0001	GT1752H	Fiat	Ducato II	2.8D	76/103	1997-2006	99460981
454061-0003	GT1752H	Iveco	Daily	2.8D	-	1995	99438906
454061-0004	GT1752H	Fiat	Ducato	2.8D	-	1996	454061-0004
454061-0006	GT1752H	Fiat	Ducato II	2.8D	84/114	1996	7701044612
454061-0007	GT1752H	Fiat	Ducato II	2.8D	90/122	1996	7701044612
454061-0008	GT1752H	Iveco	Daily	2.8D	76/103	1996	99460981
454061-0009	GT1752H	Iveco	Daily	2.8D	76/103	1996	99460981
454061-0010	GT1752H	Fiat	Ducato JTD	2.8D	84/114	1997-2006	7701044612
454061-0011	GT1752H	Fiat	Ducato JTD	2.8D	90/122	1997-2006	7701044612
454061-0012	GT1752H	Fiat	Ducato JTD	2.8D	76/103	1997-2006	7701044612
454061-0014	GT1752H	Naveco	Daily	2.8D	84/114	1996	500385898
454135-0001	GT2052V	Audi	A4	2.5D	110/150	1997-2003	059145701C
454135-0002	GT2052V	Volkswagen	Passat TDI	2.5D	110/150	1997-2004	059145701C
454135-0006	GT2052V	Audi	A4	2.5D	110/150	1997-2001	059145701G
454192-0001	GT2252V(S1)	Volkswagen	T4 Transporter	2.5D	111/151	1998-2003	074145703E
454192-0002	GT2252V(S1)	Volkswagen	T4 Transporter	2.5D	111/151	2001-	074145703G
454192-0005	GT2252V(S1)	Volkswagen	T4 Transporter	2.5D	111/151	1998-2003	074145703EV248
454192-0006	GT2252V(S1)	Volkswagen	T4 Transporter	2.5D	111/151	2003-	074145703G
454192-0007	GT2252V(S1)	Volkswagen	T4 Transporter	2.5D	111/151	2003-	074145703E
454192-0008	GT2252V(S1)	Volkswagen	T4 Transporter	2.5D	111/151	2003-	074145703G
704594-0001	GT2052V	Steyr	Ship Diesel engine	2.5D	110/150	2000	059145701C
704594-0004	GT2052V	Nissan	Patriot	-	-	1999	704594-0004
704594-0005	GT2052V	Nissan	Patriot	-	-	1999	704594-0005
704594-0009	GT2052V	Nissan	Patriot	-	-	1999	704594-0009
705954-0001	GT2052V	Nissan	Terrano Di	3.0D	125/168	1999	14411-2W203
705954-0002	GT2052V	Nissan	Mistral/Terrano	3.0D	125/168	1999	144112W203
705954-0003	GT2052V	Nissan	Mistral/Terrano	3.0D	125/168	1999	144112W203
705954-0004	GT2052V	Nissan	Mistral/Terrano	3.0D	125/168	1999	144112W203
705954-0005	GT2052V	Nissan	Patrol/Safari	3.0D	125/170	1999	14411-VC100
705954-0006	GT2052V	Nissan	Mistral/Terrano	3.0D	125/168	1999	144112W203
705954-0007	GT2052V	Nissan	Mistral/Terrano	3.0D	125/168	1999	144112W203
705954-0008	GT2052V	Nissan	Patrol/Safari	3.0D	110/150	1999-2009	14411VC100
705954-0009	GT2052V	Nissan	Patrol/Safari	3.0D	110/150	1999-2009	14411VC100
705954-0010	GT2052V	Nissan	Mistral/Terrano	3.0D	125/170	1999	14411-2W203
705954-0011	GT2052V	Nissan	Patrol/Safari	3.0D	125/170	1999	14411-VC100
705954-0012	GT2052V	Nissan	Patrol	3.0D	125/168	1999	144112W203
705954-0013	GT2052V	Nissan	Patrol/Safari	3.0D	110/150	1999	14411VC100
705954-0014	GT2052V	Nissan	Safari	3.0D	125/168	1999	14411-2W203
705954-0015	GT2052V	Nissan	Patrol/Safari	3.0D	110/150	1999	14411VC100
705954-0016	GT2052V	Nissan	Patrol	3.0D	125/168	1999	14411-VC100
705954-0017	GT2052V	Nissan	Patrol	3.0D	110/150	2000-2009	14411VB100
708162-0001	GT1752S	Naveco	Daily	2.8D	-	1996	99449169
708163-0001	GT1752S	Naveco	Daily	2.8D	-	1996	99449170
710641-0001	GT2052	SsangYong	Rexton R290	2.9D	120/163	2002	A6620903280
710641-0002	GT2052	SsangYong	Rexton R290	2.9D	120/163	2002	A6620903280
710641-0003	GT2052	SsangYong	Rexton R290	2.9D	120/163	2002	A6620903280
710641-0004	GT2052	SsangYong	Rexton R290	2.9D	120/163	2002	A6620903280
724352-0001	GT2052S	Ssang Yong	MS E-III 2	2.9L	-	2002	A6620903680
724352-0004	GT2052S	Ssang Yong	MS E-III 2	2.9L	-	2001	A6620903680
724353-0001	GT2052S	SsangYong	Korando	2.9D	88/120	2001	A6620903780
724353-0002	GT2052S	SsangYong	Korando	2.9D	95/130	2001	A6620903780
724353-0004	GT2052S	Ssang Yong	Korando	2.9L	-	2002	A6620903780
725305-0001	GT1752S	Iveco	Daily	2.8TC	-	2000	500321799
725305-0002	GT1752S	Iveco	Daily	2.8TC	-	2001	725305-0002
725305-0003	GT1752S	Iveco	Daily	2.8TC	-	2002	500321799
725305-0005	GT1752S	Renault	Master	2.8TC	-	2003	725305-0005

Feedback

Dear visitors! We value your opinion and are ready to respond to suggestions. Please leave your comments, and we will contact you shortly.
