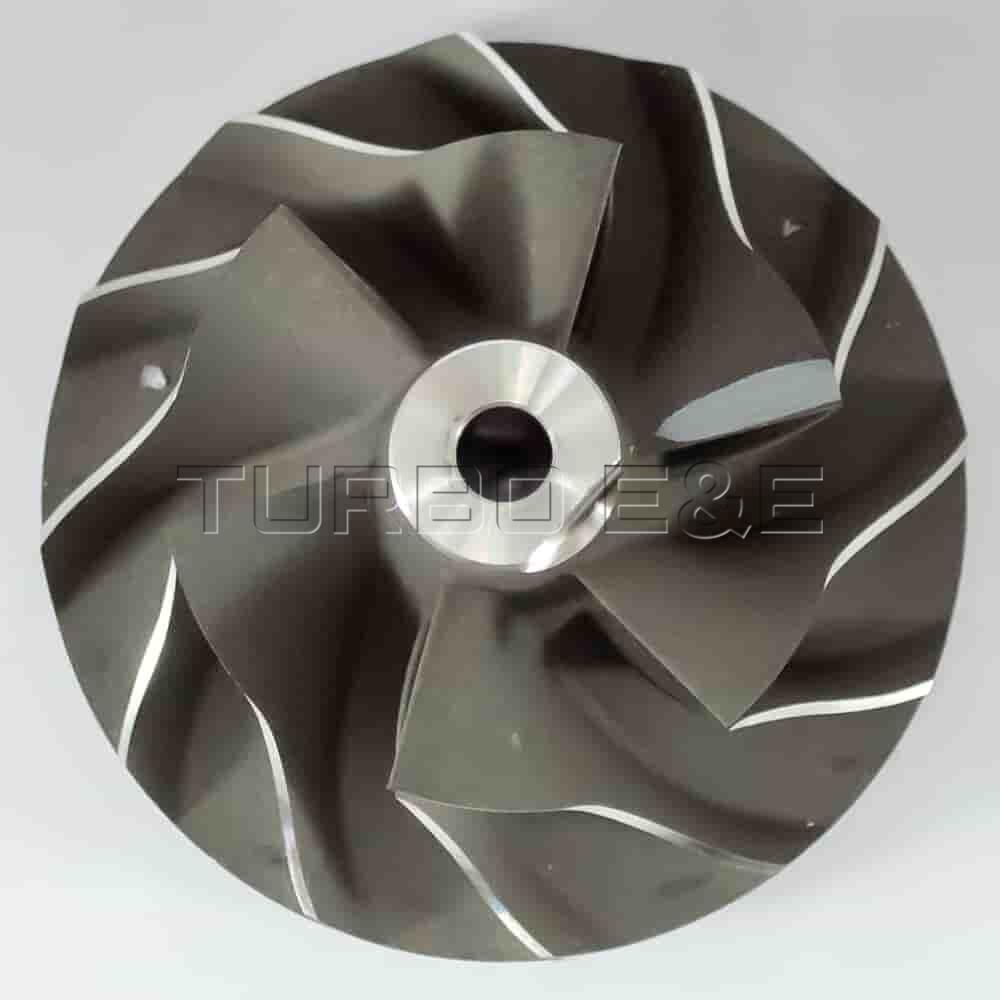

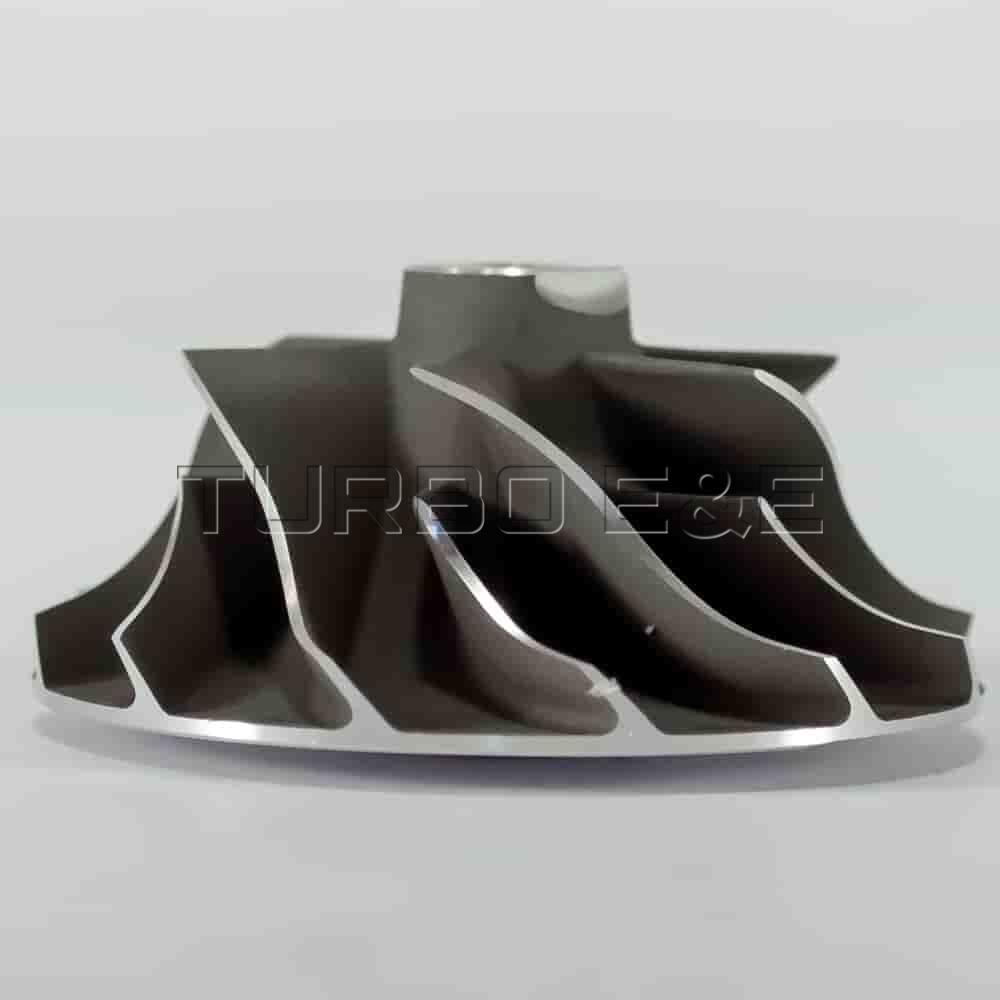

CW-0353

In stock

Prices are available for authorized users

Specifications

A, mm
inducer diameter
36.80
inducer diameter
B, mm
tip height
7.02-2.4
tip height
C, mm
exducer diameter
52.00
exducer diameter
D, mm
total height
26.10
total height
E, mm
shaft bore
5.088
shaft bore
Blades
6+6

Note

All names, numbers, symbols and descriptions are for reference only and do not represent any part, part or assembly as a _product of these manufacturers. All dimensions are in millimeters

Usage

452191-0004
- Turbo model GT2052S
- Car makePerkins
- Car model 96
- Engine displacement 4.4D
- Engine power, kW/HP -
- Year of manufacture1996-2000
- OEMU2674A094
452191-0005
- Turbo model GT2052S
- Car makePerkins
- Car model 97
- Engine displacement 4.4D
- Engine power, kW/HP -
- Year of manufacture1996-2000
- OEMU2674A308
452191-0006
- Turbo model GT2052S
- Car makePerkins
- Car model 96
- Engine displacement 4.4D
- Engine power, kW/HP -
- Year of manufacture1996-2000
- OEM2674A376
452191-0007
- Turbo model GT2052S
- Car makePerkins
- Car model 96
- Engine displacement 4.4D
- Engine power, kW/HP -
- Year of manufacture1996-2000
- OEMU2674A311
452191-0008
- Turbo model GT2052S
- Car makePerkins
- Car model 96
- Engine displacement 4.4D
- Engine power, kW/HP -
- Year of manufacture1996-2000
- OEMU2674A319
452191-0011
- Turbo model GT2052S
- Car makePerkins
- Car model Tractor
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture1997
- OEM U2674A319
452222-0002
- Turbo model GT2052S
- Car makeMassey Ferguson
- Car model Tractor
- Engine displacement 4.4D
- Engine power, kW/HP 100/136
- Year of manufacture2002
- OEMU2674A304
452222-0003
- Turbo model GT2052S
- Car makeMassey Ferguson
- Car model Tractor
- Engine displacement 4.4D
- Engine power, kW/HP 100/136
- Year of manufacture1996
- OEMU2674A305
452222-0004
- Turbo model GT2052S
- Car makePerkins
- Car model Diverse
- Engine displacement 4.4D
- Engine power, kW/HP 100/136
- Year of manufacture2002
- OEMU2674A098
452222-0006
- Turbo model GT2052S
- Car makePerkins
- Car model Agricultural
- Engine displacement 4.4D
- Engine power, kW/HP 100/136
- Year of manufacture2000
- OEMU2674A313
452301-0001
- Turbo model GT2052S
- Car makeJCB
- Car model Industrial
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2000
- OEM02/201880
452301-0003
- Turbo model GT2052S
- Car makePerkins
- Car model Industrial
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2000
- OEM02/201870
454205-0001
- Turbo model GT2052V(S1)
- Car makeVolkswagen
- Car model LT II van
- Engine displacement 2.5D
- Engine power, kW/HP 80/109
- Year of manufacture1999-2006
- OEM074145701D
454205-0002
- Turbo model GT2052V(S1)
- Car makeVolkswagen
- Car model LT II van
- Engine displacement 2.5D
- Engine power, kW/HP 80/108
- Year of manufacture2003
- OEM074145701DV248
454205-0002
- Turbo model GT2052V(S1)
- Car makeVolkswagen
- Car model LT II van
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2000-
- OEM454205-0002
454205-0006
- Turbo model GT2052V(S1)
- Car makeVolkswagen
- Car model LT II van
- Engine displacement 2.5D
- Engine power, kW/HP 80/109
- Year of manufacture1999-2003
- OEM074145701DV248
454205-0007
- Turbo model GT2052V(S1)
- Car makeVolkswagen
- Car model LT II van
- Engine displacement 2.5D
- Engine power, kW/HP 80/108
- Year of manufacture2003
- OEM074145701DV248
454205-0007
- Turbo model GT2052V(S1)
- Car makeVolkswagen
- Car model LT II van
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2000-
- OEM454205-0007
700625-0001
- Turbo model GT2052S
- Car makeMercedes-Benz
- Car model C class (W202)
- Engine displacement 2.2D
- Engine power, kW/HP 92/125
- Year of manufacture1997-2001
- OEMA6110960099
700625-0002
- Turbo model GT2052S
- Car makeMercedes-Benz
- Car model C class (W202)
- Engine displacement 2.2D
- Engine power, kW/HP 92/125
- Year of manufacture1998-1999
- OEMA6110961099
704412-0001
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model E-Class
- Engine displacement 2.2D
- Engine power, kW/HP -
- Year of manufacture1999-2003
- OEMA6110960399
709835-0001
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model E-Class
- Engine displacement 2.2D
- Engine power, kW/HP 105/143
- Year of manufacture1999-2002
- OEMA6110960799
709835-0002
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model E-Class 220 CDI (W210)
- Engine displacement 2.2D
- Engine power, kW/HP 105/143
- Year of manufacture1999-2002
- OEMA6110960799
709835-0003
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model C-Class
- Engine displacement 2.1D
- Engine power, kW/HP 105/143
- Year of manufacture2000-
- OEMA6110960999
709836-0001
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model Sprinter Van
- Engine displacement 2.2D
- Engine power, kW/HP 105/143
- Year of manufacture2000-2006
- OEMA6110960899
709836-0002
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model Sprinter Van
- Engine displacement 2.2D
- Engine power, kW/HP 105/143
- Year of manufacture2000-2006
- OEMA6110960899
709836-0003
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model Sprinter Van
- Engine displacement 2.2D
- Engine power, kW/HP 105/143
- Year of manufacture1999-2006
- OEMA6110960899
709836-0004
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model Sprinter Van
- Engine displacement 2.2D
- Engine power, kW/HP 105/143
- Year of manufacture1999-2006
- OEMA6110960899
709836-0005
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model Sprinter Van
- Engine displacement 2.2D
- Engine power, kW/HP 105/143
- Year of manufacture1999-2006
- OEMA6110960899
711006-0001
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model New C class
- Engine displacement 2.2D
- Engine power, kW/HP 105/143
- Year of manufacture2000-2001
- OEMA6110960999
711006-0003
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model New C class
- Engine displacement 2.2D
- Engine power, kW/HP 105/143
- Year of manufacture2000-2001
- OEMA6110960999
711006-0004
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model C-Class
- Engine displacement 2.2D
- Engine power, kW/HP 105/143
- Year of manufacture2000-2001
- OEMA6110960999
716111-0001
- Turbo model GT2052S
- Car makeMercedes-Benz
- Car model C class (W202)
- Engine displacement 2.2D
- Engine power, kW/HP 92/125
- Year of manufacture1997-2001
- OEMA6110961099
726698-0001
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model Sprinter
- Engine displacement 2.2D
- Engine power, kW/HP 95/130
- Year of manufacture2003-2006
- OEMA6110961599
726698-0002
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model Sprinter
- Engine displacement 2.2D
- Engine power, kW/HP 95/130
- Year of manufacture2000-2006
- OEMA6110961599
726698-0003
- Turbo model GT1852V
- Car makeMercedes-Benz
- Car model Sprinter
- Engine displacement 2.2D
- Engine power, kW/HP 95/130
- Year of manufacture2000-2006
- OEMA6110961599
727262-0002
- Turbo model GT2052S
- Car makeMassey Ferguson
- Car model Tractor (96)
- Engine displacement 4.0D
- Engine power, kW/HP 68/92
- Year of manufacture2002
- OEM2674A352
727262-0003
- Turbo model GT2052S
- Car makeMassey Ferguson
- Car model Tractor (96)
- Engine displacement 4.0D
- Engine power, kW/HP 68/92
- Year of manufacture1996
- OEM2674A353
727262-0004
- Turbo model GT2052S
- Car makePerkins
- Car model Contruction
- Engine displacement 4.0D
- Engine power, kW/HP 68/92
- Year of manufacture2002
- OEM2674A354
727262-0006
- Turbo model GT2052S
- Car makePerkins
- Car model Contruction
- Engine displacement 4.0D
- Engine power, kW/HP 68/92
- Year of manufacture2002
- OEM2674A356
727264-0004
- Turbo model GT2052S
- Car makeVarious
- Car model Various
- Engine displacement 4.0D
- Engine power, kW/HP 75/100
- Year of manufacture1997
- OEM2674A375
727264-0005
- Turbo model GT2052S
- Car makePerkins
- Car model Industrial
- Engine displacement 4.0D
- Engine power, kW/HP 75/100
- Year of manufacture1996
- OEM2674A374
727264-0006
- Turbo model GT2052S
- Car makePerkins
- Car model Industrial
- Engine displacement 4.0D
- Engine power, kW/HP 75/100
- Year of manufacture1996
- OEM2674A094
727264-0008
- Turbo model GT2052S
- Car makePerkins
- Car model Industrial
- Engine displacement 4.0D
- Engine power, kW/HP 75/100
- Year of manufacture1996
- OEM2674A094
727264-0009
- Turbo model GT2052S
- Car makePerkins
- Car model Telehandler Industrial
- Engine displacement 4.0D
- Engine power, kW/HP 75/100
- Year of manufacture2007
- OEM2674A338
727264-0010
- Turbo model GT2052S
- Car makePerkins
- Car model Industrial
- Engine displacement 4.0D
- Engine power, kW/HP 75/100
- Year of manufacture1996
- OEM2674A374
727264-0016
- Turbo model GT2052S
- Car makePerkins
- Car model Industrial
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture1996
- OEM2674A094
727266-0001
- Turbo model GT2052S
- Car makePerkins
- Car model Industrial
- Engine displacement 4.0D
- Engine power, kW/HP 75/100
- Year of manufacture2000
- OEM2674A391
727266-0003
- Turbo model GT2052S
- Car makeJCB
- Car model Agricultural
- Engine displacement 4.0D
- Engine power, kW/HP 68/91
- Year of manufacture2000
- OEM2674A328

Turbo No.	Turbo model	Car make	Car model	Engine displacement	Engine power, kW/HP	Year of manufacture	OEM
452191-0004	GT2052S	Perkins	96	4.4D	-	1996-2000	U2674A094
452191-0005	GT2052S	Perkins	97	4.4D	-	1996-2000	U2674A308
452191-0006	GT2052S	Perkins	96	4.4D	-	1996-2000	2674A376
452191-0007	GT2052S	Perkins	96	4.4D	-	1996-2000	U2674A311
452191-0008	GT2052S	Perkins	96	4.4D	-	1996-2000	U2674A319
452191-0011	GT2052S	Perkins	Tractor	-	-	1997	U2674A319
452222-0002	GT2052S	Massey Ferguson	Tractor	4.4D	100/136	2002	U2674A304
452222-0003	GT2052S	Massey Ferguson	Tractor	4.4D	100/136	1996	U2674A305
452222-0004	GT2052S	Perkins	Diverse	4.4D	100/136	2002	U2674A098
452222-0006	GT2052S	Perkins	Agricultural	4.4D	100/136	2000	U2674A313
452301-0001	GT2052S	JCB	Industrial	-	-	2000	02/201880
452301-0003	GT2052S	Perkins	Industrial	-	-	2000	02/201870
454205-0001	GT2052V(S1)	Volkswagen	LT II van	2.5D	80/109	1999-2006	074145701D
454205-0002	GT2052V(S1)	Volkswagen	LT II van	2.5D	80/108	2003	074145701DV248
454205-0002	GT2052V(S1)	Volkswagen	LT II van	-	-	2000-	454205-0002
454205-0006	GT2052V(S1)	Volkswagen	LT II van	2.5D	80/109	1999-2003	074145701DV248
454205-0007	GT2052V(S1)	Volkswagen	LT II van	2.5D	80/108	2003	074145701DV248
454205-0007	GT2052V(S1)	Volkswagen	LT II van	-	-	2000-	454205-0007
700625-0001	GT2052S	Mercedes-Benz	C class (W202)	2.2D	92/125	1997-2001	A6110960099
700625-0002	GT2052S	Mercedes-Benz	C class (W202)	2.2D	92/125	1998-1999	A6110961099
704412-0001	GT1852V	Mercedes-Benz	E-Class	2.2D	-	1999-2003	A6110960399
709835-0001	GT1852V	Mercedes-Benz	E-Class	2.2D	105/143	1999-2002	A6110960799
709835-0002	GT1852V	Mercedes-Benz	E-Class 220 CDI (W210)	2.2D	105/143	1999-2002	A6110960799
709835-0003	GT1852V	Mercedes-Benz	C-Class	2.1D	105/143	2000-	A6110960999
709836-0001	GT1852V	Mercedes-Benz	Sprinter Van	2.2D	105/143	2000-2006	A6110960899
709836-0002	GT1852V	Mercedes-Benz	Sprinter Van	2.2D	105/143	2000-2006	A6110960899
709836-0003	GT1852V	Mercedes-Benz	Sprinter Van	2.2D	105/143	1999-2006	A6110960899
709836-0004	GT1852V	Mercedes-Benz	Sprinter Van	2.2D	105/143	1999-2006	A6110960899
709836-0005	GT1852V	Mercedes-Benz	Sprinter Van	2.2D	105/143	1999-2006	A6110960899
711006-0001	GT1852V	Mercedes-Benz	New C class	2.2D	105/143	2000-2001	A6110960999
711006-0003	GT1852V	Mercedes-Benz	New C class	2.2D	105/143	2000-2001	A6110960999
711006-0004	GT1852V	Mercedes-Benz	C-Class	2.2D	105/143	2000-2001	A6110960999
716111-0001	GT2052S	Mercedes-Benz	C class (W202)	2.2D	92/125	1997-2001	A6110961099
726698-0001	GT1852V	Mercedes-Benz	Sprinter	2.2D	95/130	2003-2006	A6110961599
726698-0002	GT1852V	Mercedes-Benz	Sprinter	2.2D	95/130	2000-2006	A6110961599
726698-0003	GT1852V	Mercedes-Benz	Sprinter	2.2D	95/130	2000-2006	A6110961599
727262-0002	GT2052S	Massey Ferguson	Tractor (96)	4.0D	68/92	2002	2674A352
727262-0003	GT2052S	Massey Ferguson	Tractor (96)	4.0D	68/92	1996	2674A353
727262-0004	GT2052S	Perkins	Contruction	4.0D	68/92	2002	2674A354
727262-0006	GT2052S	Perkins	Contruction	4.0D	68/92	2002	2674A356
727264-0004	GT2052S	Various	Various	4.0D	75/100	1997	2674A375
727264-0005	GT2052S	Perkins	Industrial	4.0D	75/100	1996	2674A374
727264-0006	GT2052S	Perkins	Industrial	4.0D	75/100	1996	2674A094
727264-0008	GT2052S	Perkins	Industrial	4.0D	75/100	1996	2674A094
727264-0009	GT2052S	Perkins	Telehandler Industrial	4.0D	75/100	2007	2674A338
727264-0010	GT2052S	Perkins	Industrial	4.0D	75/100	1996	2674A374
727264-0016	GT2052S	Perkins	Industrial	-	-	1996	2674A094
727266-0001	GT2052S	Perkins	Industrial	4.0D	75/100	2000	2674A391
727266-0003	GT2052S	JCB	Agricultural	4.0D	68/91	2000	2674A328

Feedback

Dear visitors! We value your opinion and are ready to respond to suggestions. Please leave your comments, and we will contact you shortly.
