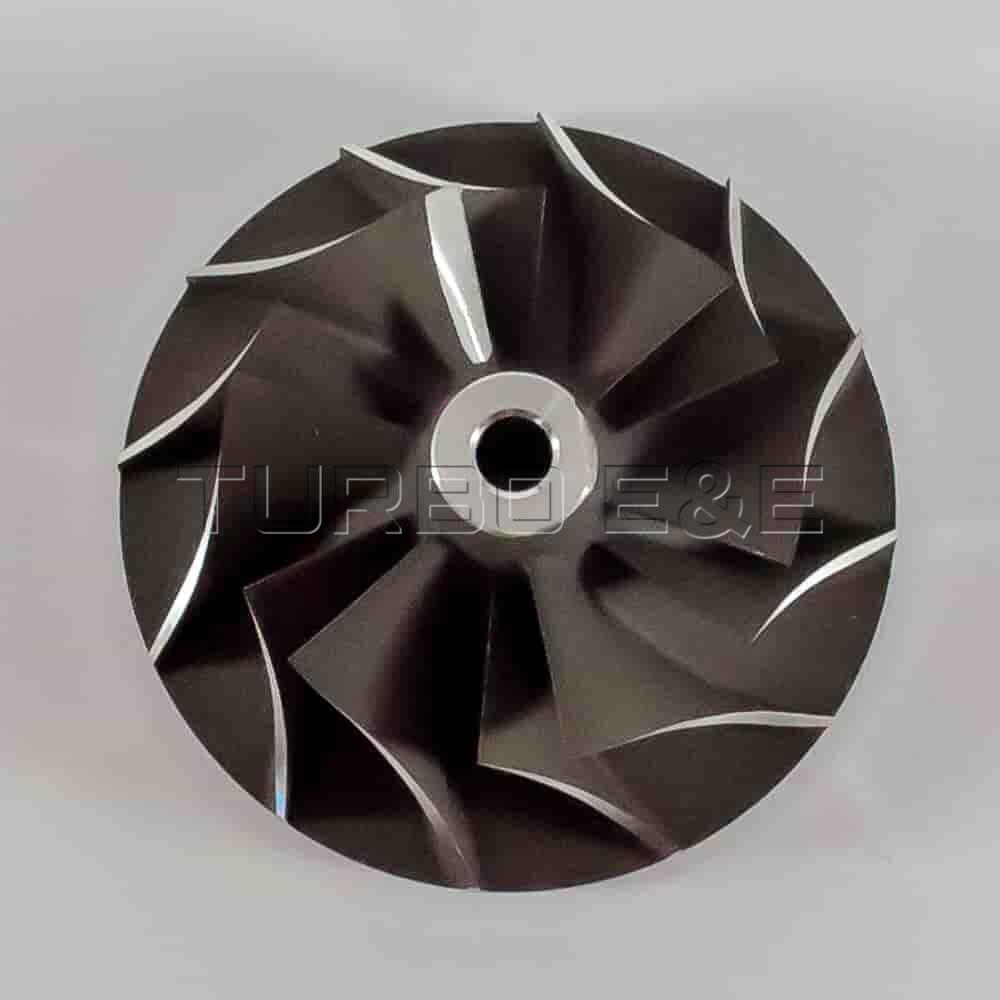

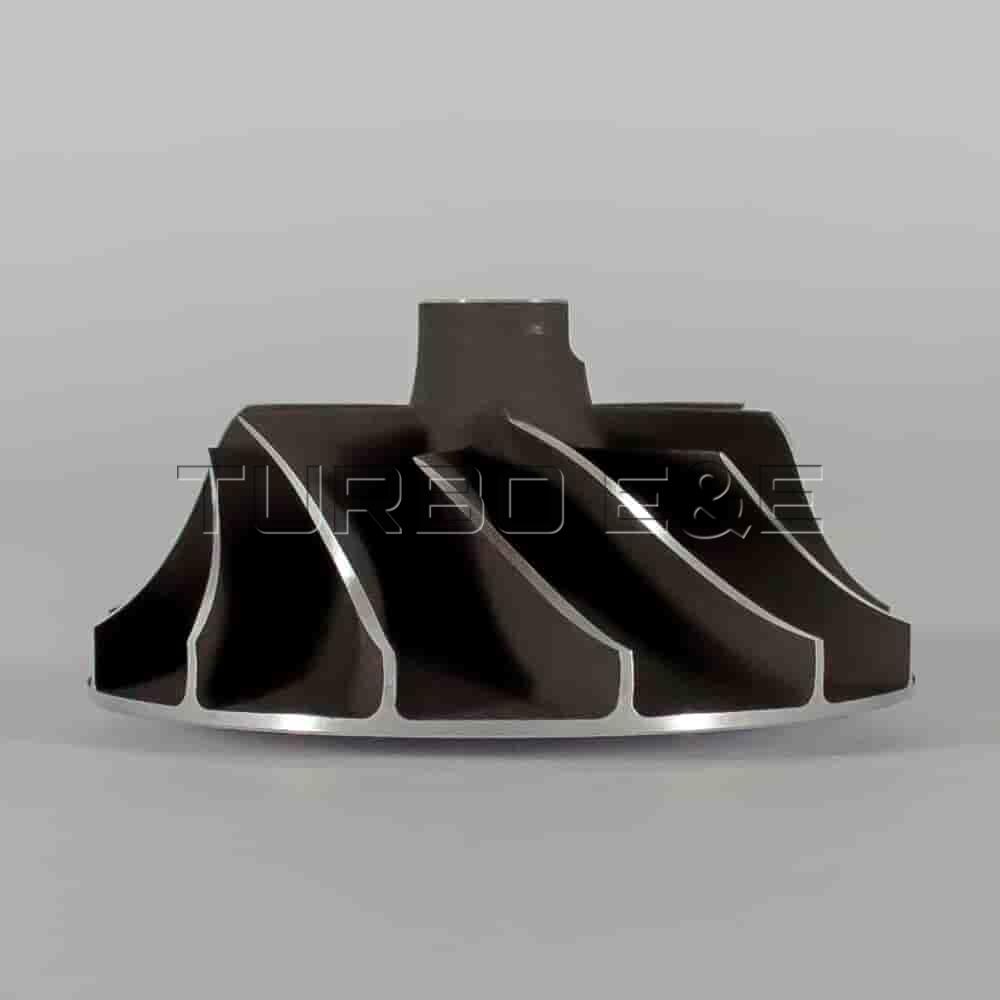

CW-0027

In stock

Prices are available for authorized users

Specifications

A, mm
inducer diameter
35.90
inducer diameter
B, mm
tip height
6.5-1.8
tip height
C, mm
exducer diameter
50.00
exducer diameter
D, mm
total height
25.70
total height
E, mm
shaft bore
4.610
shaft bore
Blades
6+6

Note

All names, numbers, symbols and descriptions are for reference only and do not represent any part, part or assembly as a _product of these manufacturers. All dimensions are in millimeters

Usage

5303-970-0005
- Turbo model K03
- Car makeAudi
- Car model A4
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1995
- OEM058145703N
5303-970-0005
- Turbo model K03
- Car makeAudi
- Car model A6
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1995
- OEM058145703C
5303-970-0011
- Turbo model K03
- Car makeAudi
- Car model A3
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1999
- OEM06A145704
5303-970-0013
- Turbo model K03
- Car makeAudi
- Car model A4
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1996
- OEM058145703E
5303-970-0022
- Turbo model K03
- Car makeSeat
- Car model Alhambra
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1997
- OEM06A145703C
5303-970-0025
- Turbo model K03
- Car makeVolkswagen
- Car model Passat 1.8T
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1999
- OEM058145703K
5303-970-0026
- Turbo model K03
- Car makeAudi
- Car model A3
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1999
- OEM06A145704A
5303-970-0029
- Turbo model K03
- Car makeAudi
- Car model A4
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture2002
- OEM058145703J
5303-970-0035
- Turbo model K03
- Car makeAudi
- Car model TT
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1998
- OEM06A145704B
5303-970-0044
- Turbo model K03
- Car makeVolkswagen
- Car model New Beetle 1.8T
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1999
- OEM06A145704L
5303-970-0045
- Turbo model K03
- Car makeSeat
- Car model Ibiza Cupra 1.8T
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1999
- OEM06A145704K
5303-970-0049
- Turbo model K03
- Car makeSeat
- Car model Alhambra
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture2000
- OEM06A145704H
5303-970-0103
- Turbo model K03
- Car makeWeber
- Car model Snow Mobile
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2004
- OEM102681
5303-970-0354
- Turbo model K03
- Car makeJAC
- Car model Refine S5
- Engine displacement 2.0B
- Engine power, kW/HP -
- Year of manufacture2000
- OEM1016500-GD052
5303-988-0005
- Turbo model K03
- Car makeAudi
- Car model A4
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1995
- OEM058145703N
5303-988-0005
- Turbo model K03
- Car makeAudi
- Car model A6
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1995
- OEM058145703C
5303-988-0011
- Turbo model K03
- Car makeAudi
- Car model A3
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1999
- OEM06A145704
5303-988-0013
- Turbo model K03
- Car makeAudi
- Car model A4
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1996
- OEM058145703E
5303-988-0022
- Turbo model K03
- Car makeSeat
- Car model Alhambra
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1997
- OEM06A145703C
5303-988-0025
- Turbo model K03
- Car makeVolkswagen
- Car model Passat 1.8T
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1999
- OEM058145703K
5303-988-0026
- Turbo model K03
- Car makeAudi
- Car model A3
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1999
- OEM06A145704A
5303-988-0029
- Turbo model K03
- Car makeAudi
- Car model A6
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture2002
- OEM058145703J
5303-988-0035
- Turbo model K03
- Car makeAudi
- Car model TT
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1998
- OEM06A145704B
5303-988-0044
- Turbo model K03
- Car makeVolkswagen
- Car model New Beetle 1.8T
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1999
- OEM06A145704L
5303-988-0045
- Turbo model K03
- Car makeSeat
- Car model Ibiza Cupra 1.8T
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture1999
- OEM06A145704K
5303-988-0049
- Turbo model K03
- Car makeSeat
- Car model Alhambra
- Engine displacement 1.8B
- Engine power, kW/HP -
- Year of manufacture2000
- OEM06A145704H
5303-988-0103
- Turbo model K03
- Car makeWeber
- Car model Snow Mobile
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2004
- OEM102681
5303-988-0354
- Turbo model K03
- Car makeJAC
- Car model Refine S5
- Engine displacement 2.0B
- Engine power, kW/HP -
- Year of manufacture2000
- OEM1016500-GD052
5303-991-0029
- Turbo model K03
- Car makeVolkswagen
- Car model Passat
- Engine displacement 1.8
- Engine power, kW/HP -
- Year of manufacture2002
- OEM058145703N
5304-970-0002
- Turbo model K04
- Car makeChrysler
- Car model Voyager
- Engine displacement 2.5D
- Engine power, kW/HP -
- Year of manufacture1992
- OEM35242037F
5304-970-0003
- Turbo model K04
- Car makeYeutya
- Car model Pick-up
- Engine displacement 2.5D
- Engine power, kW/HP -
- Year of manufacture1992
- OEM35242042F
5304-970-0007
- Turbo model K04
- Car makeTata
- Car model Sierra Pick-up
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture1994
- OEM254714510104
5304-970-0012
- Turbo model K04
- Car makeBajaj
- Car model Passenger car
- Engine displacement 2.4D
- Engine power, kW/HP -
- Year of manufacture1995
- OEMB008080900780
5304-970-0013
- Turbo model K04
- Car makeCitroen
- Car model ZX
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture1998
- OEM9633828080
5304-970-0016
- Turbo model K04
- Car makeAVIA Motors
- Car model Vehicle
- Engine displacement 3.3D
- Engine power, kW/HP -
- Year of manufacture1996
- OEM442-17076-011-7
5304-970-0018
- Turbo model K04
- Car makeTata
- Car model Winger
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2002
- OEM254714510107
5304-970-0019
- Turbo model K04
- Car makeSteyr
- Car model Van
- Engine displacement 2.1D
- Engine power, kW/HP -
- Year of manufacture1998
- OEM2203505/0
5304-970-0034
- Turbo model K04
- Car makeTata
- Car model Van
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2004
- OEM53049700034
5304-988-0002
- Turbo model K04
- Car makeChrysler
- Car model Voyager
- Engine displacement 2.5D
- Engine power, kW/HP -
- Year of manufacture1992
- OEM35242037F
5304-988-0003
- Turbo model K04
- Car makeYeutya
- Car model Pick-up
- Engine displacement 2.5D
- Engine power, kW/HP -
- Year of manufacture1992
- OEM35242042F
5304-988-0007
- Turbo model K04
- Car makeTata
- Car model Sierra Pick-up
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture1994
- OEM254714510104
5304-988-0012
- Turbo model K04
- Car makeBajaj
- Car model Passenger car
- Engine displacement 2.4D
- Engine power, kW/HP -
- Year of manufacture1995
- OEMB008080900780
5304-988-0013
- Turbo model K04
- Car makeCitroen
- Car model ZX
- Engine displacement 1.9D
- Engine power, kW/HP -
- Year of manufacture1998
- OEM9633828080
5304-988-0016
- Turbo model K04
- Car makeAVIA Motors
- Car model Vehicle
- Engine displacement 3.3D
- Engine power, kW/HP -
- Year of manufacture1996
- OEM442-17076-011-7
5304-988-0018
- Turbo model K04
- Car makeTata
- Car model Winger
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture2002
- OEM254714510107
5304-988-0019
- Turbo model K04
- Car makeSteyr
- Car model Van
- Engine displacement 2.1D
- Engine power, kW/HP -
- Year of manufacture1998
- OEM2203505/0
5304-988-0034
- Turbo model K04
- Car makeTata
- Car model Van
- Engine displacement 2.0D
- Engine power, kW/HP -
- Year of manufacture2004
- OEM53049880034

Turbo No.	Turbo model	Car make	Car model	Engine displacement	Engine power, kW/HP	Year of manufacture	OEM
5303-970-0005	K03	Audi	A4	1.8B	-	1995	058145703N
5303-970-0005	K03	Audi	A6	1.8B	-	1995	058145703C
5303-970-0011	K03	Audi	A3	1.8B	-	1999	06A145704
5303-970-0013	K03	Audi	A4	1.8B	-	1996	058145703E
5303-970-0022	K03	Seat	Alhambra	1.8B	-	1997	06A145703C
5303-970-0025	K03	Volkswagen	Passat 1.8T	1.8B	-	1999	058145703K
5303-970-0026	K03	Audi	A3	1.8B	-	1999	06A145704A
5303-970-0029	K03	Audi	A4	1.8B	-	2002	058145703J
5303-970-0035	K03	Audi	TT	1.8B	-	1998	06A145704B
5303-970-0044	K03	Volkswagen	New Beetle 1.8T	1.8B	-	1999	06A145704L
5303-970-0045	K03	Seat	Ibiza Cupra 1.8T	1.8B	-	1999	06A145704K
5303-970-0049	K03	Seat	Alhambra	1.8B	-	2000	06A145704H
5303-970-0103	K03	Weber	Snow Mobile	-	-	2004	102681
5303-970-0354	K03	JAC	Refine S5	2.0B	-	2000	1016500-GD052
5303-988-0005	K03	Audi	A4	1.8B	-	1995	058145703N
5303-988-0005	K03	Audi	A6	1.8B	-	1995	058145703C
5303-988-0011	K03	Audi	A3	1.8B	-	1999	06A145704
5303-988-0013	K03	Audi	A4	1.8B	-	1996	058145703E
5303-988-0022	K03	Seat	Alhambra	1.8B	-	1997	06A145703C
5303-988-0025	K03	Volkswagen	Passat 1.8T	1.8B	-	1999	058145703K
5303-988-0026	K03	Audi	A3	1.8B	-	1999	06A145704A
5303-988-0029	K03	Audi	A6	1.8B	-	2002	058145703J
5303-988-0035	K03	Audi	TT	1.8B	-	1998	06A145704B
5303-988-0044	K03	Volkswagen	New Beetle 1.8T	1.8B	-	1999	06A145704L
5303-988-0045	K03	Seat	Ibiza Cupra 1.8T	1.8B	-	1999	06A145704K
5303-988-0049	K03	Seat	Alhambra	1.8B	-	2000	06A145704H
5303-988-0103	K03	Weber	Snow Mobile	-	-	2004	102681
5303-988-0354	K03	JAC	Refine S5	2.0B	-	2000	1016500-GD052
5303-991-0029	K03	Volkswagen	Passat	1.8	-	2002	058145703N
5304-970-0002	K04	Chrysler	Voyager	2.5D	-	1992	35242037F
5304-970-0003	K04	Yeutya	Pick-up	2.5D	-	1992	35242042F
5304-970-0007	K04	Tata	Sierra Pick-up	2.0D	-	1994	254714510104
5304-970-0012	K04	Bajaj	Passenger car	2.4D	-	1995	B008080900780
5304-970-0013	K04	Citroen	ZX	1.9D	-	1998	9633828080
5304-970-0016	K04	AVIA Motors	Vehicle	3.3D	-	1996	442-17076-011-7
5304-970-0018	K04	Tata	Winger	-	-	2002	254714510107
5304-970-0019	K04	Steyr	Van	2.1D	-	1998	2203505/0
5304-970-0034	K04	Tata	Van	2.0D	-	2004	53049700034
5304-988-0002	K04	Chrysler	Voyager	2.5D	-	1992	35242037F
5304-988-0003	K04	Yeutya	Pick-up	2.5D	-	1992	35242042F
5304-988-0007	K04	Tata	Sierra Pick-up	2.0D	-	1994	254714510104
5304-988-0012	K04	Bajaj	Passenger car	2.4D	-	1995	B008080900780
5304-988-0013	K04	Citroen	ZX	1.9D	-	1998	9633828080
5304-988-0016	K04	AVIA Motors	Vehicle	3.3D	-	1996	442-17076-011-7
5304-988-0018	K04	Tata	Winger	-	-	2002	254714510107
5304-988-0019	K04	Steyr	Van	2.1D	-	1998	2203505/0
5304-988-0034	K04	Tata	Van	2.0D	-	2004	53049880034

Feedback

Dear visitors! We value your opinion and are ready to respond to suggestions. Please leave your comments, and we will contact you shortly.
