CW-0369

CW-0369

  • CW-0369
  • CW-0369
  • CW-0369
  • CW-0369

CW-0369

In stock

Prices are available for authorized users

Category

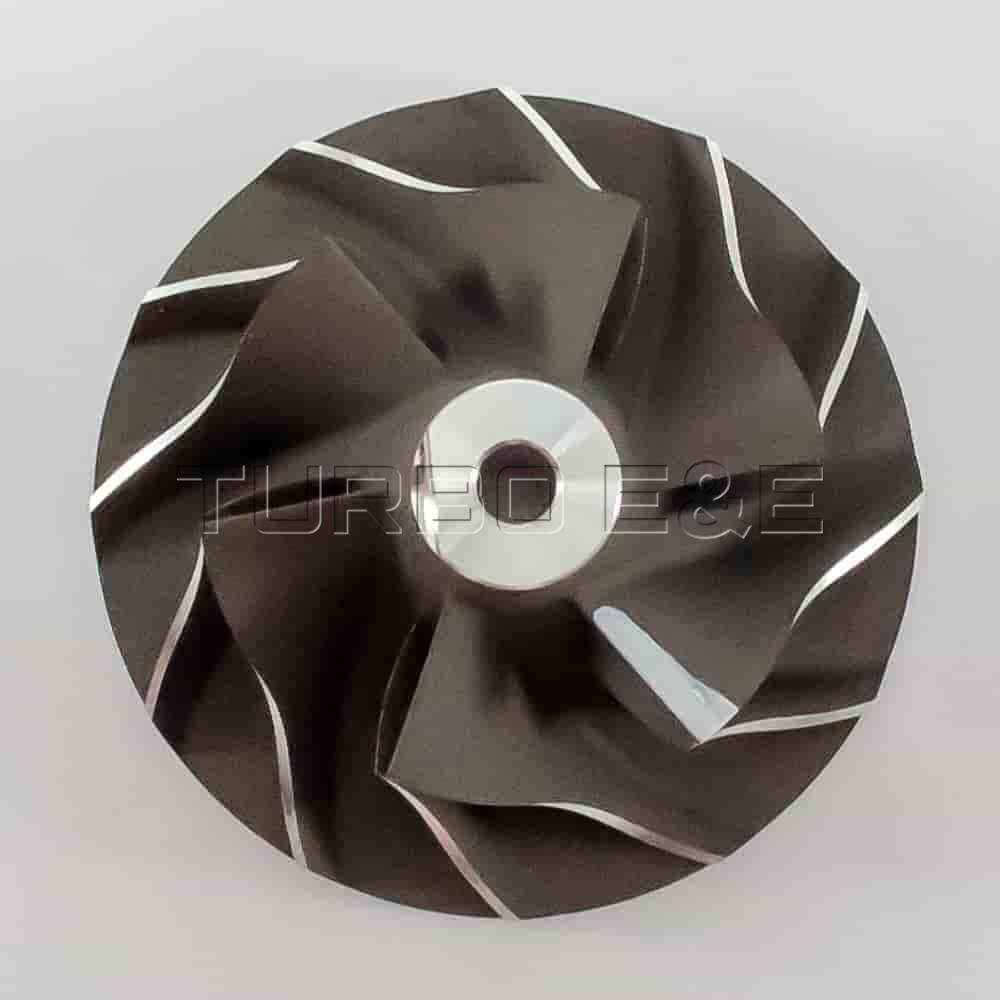

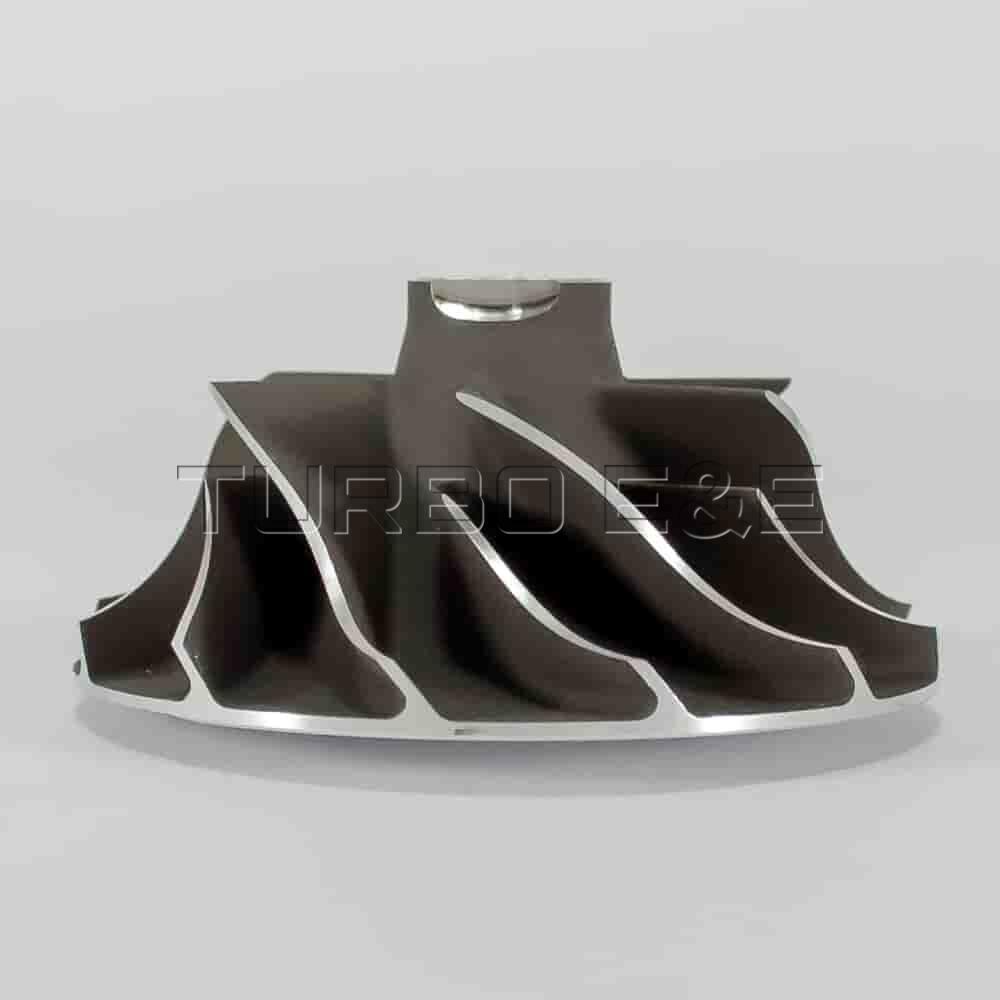

COMPRESSOR WHEEL

Specifications

  • A, mm

    inducer diameter
    36.70

  • B, mm

    tip height
    6.0-1.8

  • C, mm

    exducer diameter
    51.00

  • D, mm

    total height
    25.70

  • E, mm

    shaft bore
    4.610

  • Blades

    6+6

Note

All names, numbers, symbols and descriptions are for reference only and do not represent any part, part or assembly as a _product of these manufacturers. All dimensions are in millimeters

Usage

  • 5303-970-0055
    • Turbo model K03
    • Car makeOpel
    • Car model Movano DTI
    • Engine displacement 2.5D
    • Engine power, kW/HP 83/114
    • Year of manufacture2006
    • OEM7711134973
  • 5303-970-0055
    • Turbo model K03
    • Car makeRenault
    • Car model Master
    • Engine displacement 2.5D
    • Engine power, kW/HP 83/114
    • Year of manufacture2000
    • OEM8200036999
  • 5303-988-0055
    • Turbo model K03
    • Car makeOpel
    • Car model Movano DTI
    • Engine displacement 2.5D
    • Engine power, kW/HP 83/114
    • Year of manufacture2006
    • OEM7711134973
  • 5303-988-0055
    • Turbo model K03
    • Car makeRenault
    • Car model Master
    • Engine displacement 2.5D
    • Engine power, kW/HP 83/114
    • Year of manufacture2000
    • OEM8200036999
Turbo No.Turbo modelCar makeCar modelEngine displacementEngine power, kW/HPYear of manufactureOEM
5303-970-0055
K03
Opel
Movano DTI
2.5D
83/114
2006
7711134973
5303-970-0055
K03
Renault
Master
2.5D
83/114
2000
8200036999
5303-988-0055
K03
Opel
Movano DTI
2.5D
83/114
2006
7711134973
5303-988-0055
K03
Renault
Master
2.5D
83/114
2000
8200036999
