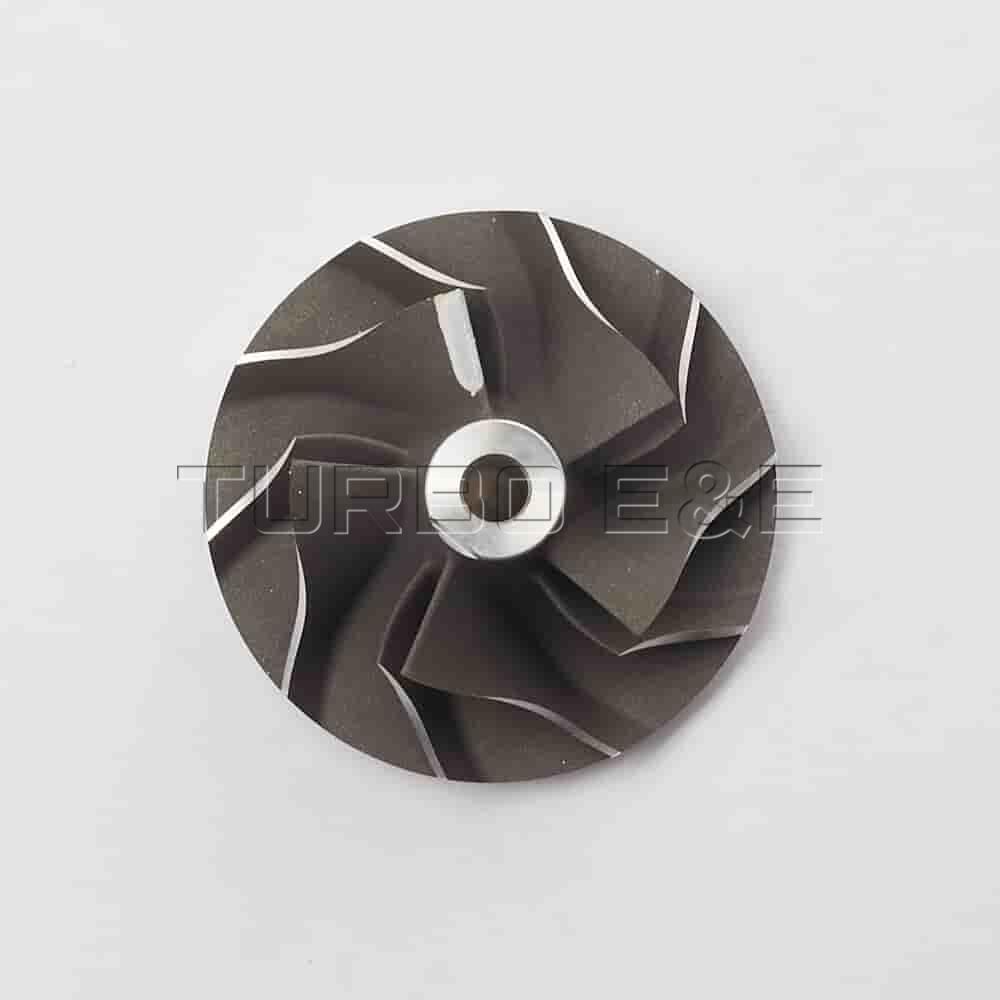

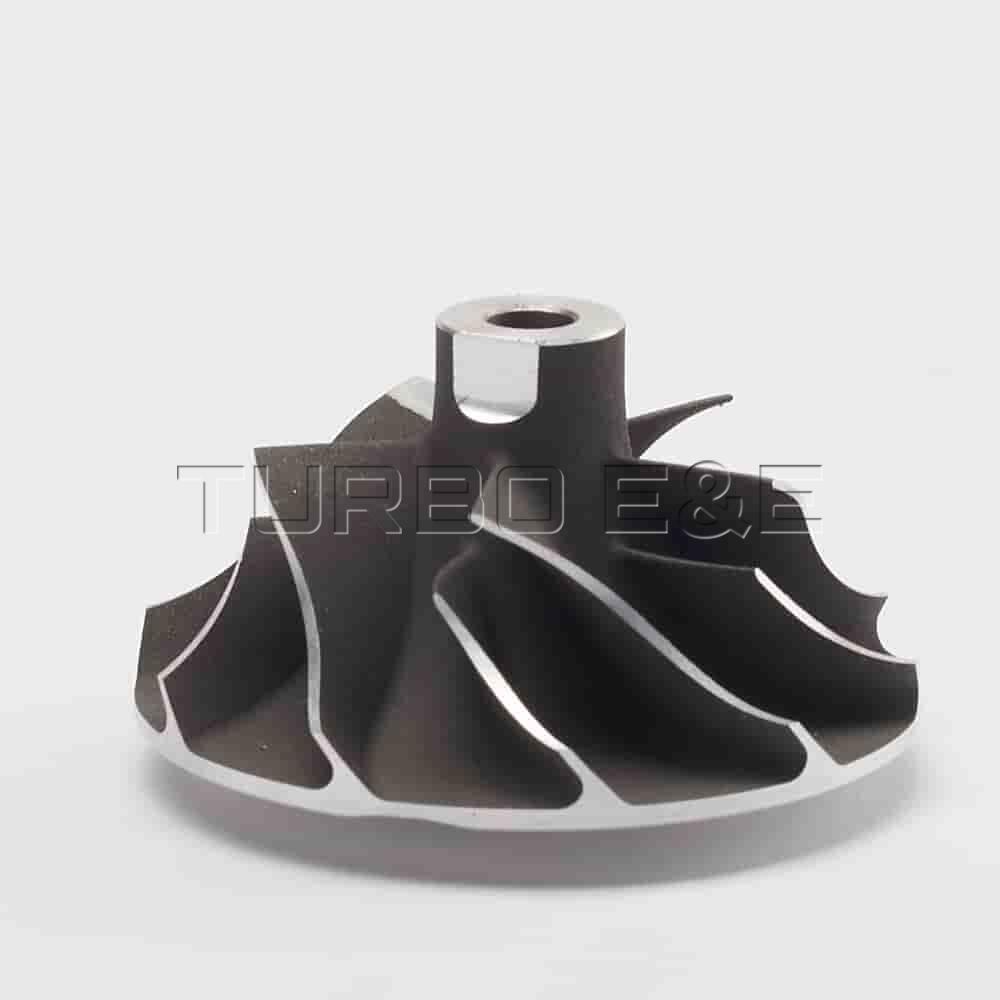

CW-0100

In stock

Prices are available for authorized users

Specifications

A, mm
inducer diameter
25.90
inducer diameter
B, mm
tip height
6.8-2.8
tip height
C, mm
exducer diameter
37.00
exducer diameter
D, mm
total height
22.00
total height
E, mm
shaft bore
4.105
shaft bore
Blades
5+5

Note

All names, numbers, symbols and descriptions are for reference only and do not represent any part, part or assembly as a _product of these manufacturers. All dimensions are in millimeters

Usage

5435-970-0005
- Turbo model KP35
- Car makeFiat
- Car model Doblo
- Engine displacement 1.25D
- Engine power, kW/HP -
- Year of manufacture2007
- OEM73501343
5435-970-0005
- Turbo model KP35
- Car makeFiat
- Car model Panda
- Engine displacement 1.25D
- Engine power, kW/HP -
- Year of manufacture2007
- OEM73501343
5435-970-0006
- Turbo model KP35
- Car makeOpel
- Car model Corsa
- Engine displacement 1.3D
- Engine power, kW/HP -
- Year of manufacture2002
- OEM73501344
5435-970-0018
- Turbo model KP35
- Car makeFiat
- Car model Passenger car
- Engine displacement 1.25D
- Engine power, kW/HP -
- Year of manufacture2005
- OEM55202637
5435-970-0019
- Turbo model KP35
- Car makeOpel
- Car model Passenger car
- Engine displacement 1.3D
- Engine power, kW/HP -
- Year of manufacture2005
- OEM55202638
5435-971-0005
- Turbo model KP35
- Car make-
- Car model -
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture-
- OEM-
5435-971-0018
- Turbo model KP35
- Car make-
- Car model -
- Engine displacement -
- Engine power, kW/HP -
- Year of manufacture-
- OEM-
5435-988-0005
- Turbo model KP35
- Car makeFiat
- Car model Doblo
- Engine displacement 1.25D
- Engine power, kW/HP -
- Year of manufacture2007
- OEM73501343
5435-988-0005
- Turbo model KP35
- Car makeFiat
- Car model Panda
- Engine displacement 1.25D
- Engine power, kW/HP -
- Year of manufacture2007
- OEM73501343
5435-988-0006
- Turbo model KP35
- Car makeOpel
- Car model Corsa
- Engine displacement 1.3D
- Engine power, kW/HP -
- Year of manufacture2002
- OEM73501344
5435-988-0018
- Turbo model KP35
- Car makeFiat
- Car model Passenger car
- Engine displacement 1.25D
- Engine power, kW/HP -
- Year of manufacture2005
- OEM55202637
5435-988-0019
- Turbo model KP35
- Car makeOpel
- Car model Passenger car
- Engine displacement 1.3D
- Engine power, kW/HP -
- Year of manufacture2005
- OEM55202638

Turbo No.	Turbo model	Car make	Car model	Engine displacement	Engine power, kW/HP	Year of manufacture	OEM
5435-970-0005	KP35	Fiat	Doblo	1.25D	-	2007	73501343
5435-970-0005	KP35	Fiat	Panda	1.25D	-	2007	73501343
5435-970-0006	KP35	Opel	Corsa	1.3D	-	2002	73501344
5435-970-0018	KP35	Fiat	Passenger car	1.25D	-	2005	55202637
5435-970-0019	KP35	Opel	Passenger car	1.3D	-	2005	55202638
5435-971-0005	KP35	-	-	-	-	-	-
5435-971-0018	KP35	-	-	-	-	-	-
5435-988-0005	KP35	Fiat	Doblo	1.25D	-	2007	73501343
5435-988-0005	KP35	Fiat	Panda	1.25D	-	2007	73501343
5435-988-0006	KP35	Opel	Corsa	1.3D	-	2002	73501344
5435-988-0018	KP35	Fiat	Passenger car	1.25D	-	2005	55202637
5435-988-0019	KP35	Opel	Passenger car	1.3D	-	2005	55202638
